IP67 Waterproof 316 Stainless Steel Fluid Level Meter -50-250 C Probe Temperature

Product Description:

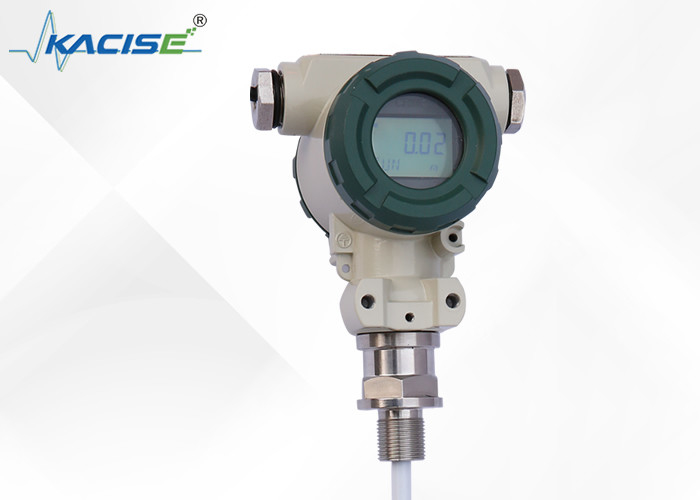

The KCF600 series capacitive level transmitter is designed for the continuous detection of various liquids that are in harsh conditions such as high temperature and pressure, high corrosion, easy crystallization, and easy blockage. It is suitable for measuring water, acid and alkali solutions and water level in the boiler. The entire machine does not have any movable or flexible parts and has the characteristics of impact resistance, easy installation, high reliability, high precision, and reasonable cost. It can replace traditional float type, input type, differential pressure type of level transmitter in various situations.

The key parts of the transmitter are equipped with an advanced RF capacitive sensing circuit that has been precisely compensated by temperature and linearity correction and then transformed into a standard electrical signal, typically 4 ~ 20 mA. The system configuration offers options for HART, CANBUS, and 485 communication protocols. The full range of transmitters has a self-calibration feature. Users can perform "zero" and "range" automatic calibration using two keys to adapt to complex situations with different requirements.

Features:

Simple structures, without any movable or elastic components, also have high reliability and require minimal maintenance, even under normal circumstances. This means that our product doesn't need regular medium and small repairs.

We offer a variety of signal output options to facilitate different system configurations to better meet the needs of our customers. Our product is designed to be convenient for high temperature and high-pressure containers. Additionally, the measured data is not affected by the measured liquid temperature, specific gravity, shape of the container, or the influence of pressure.

We take pride in being especially suitable for the measurement of acid, alkali, and other corrosive liquids. In order to offer extra peace of mind, our product comes equipped with perfect protection against overcurrent, overvoltage, and power polarity.

Technical Parameters:

The detection range of this device is between 0.01 and 30 meters. It has two levels of accuracy: level 0.2 and level 0.5.

The pressure range it can measure is between -0.1 MPa and 32 MPa. The probe temperature range is from -50 to 250 degrees Celsius, while the ambient temperature range is from -20 to 60 degrees Celsius. The device can be stored within a temperature range of -55 to +125 degrees Celsius.

Output signals include 4-20mA, 4-20mA with HART communication, 485 or CAN bus communication. This device requires a supply voltage of 12-28VDC and should be powered by the safety barrier. It can be fixed via screw mounting M20×1.5, M27×2 or flange mounting DN25, DN40, or DN50. Special specifications can be customized according to user requirements.

The device is made of 316 stainless steel, 1Gr18Ni19Tior or PTFE. Its long-term stability is less than or equal to 0.2%FS/year. It has a temperature drift of less than or equal to 0.02%FS/℃ within the range of 0 to 70 degrees Celsius. The explosion levels are Intrinsically Safe Exira ⅡC T6 and Flameproof Ext II C T5. It has a protection level of IP67 and its Intrinsically Safe parameters are Ui:28VDC, Ii:93mA, Pi:0.65W, Ci:0.042uf, and Li:0mH.

• Detection range: 0.01~30 m
• Accuracy: level 0.2, level 0.5
• Pressure range: -0.1MPa~32MPa
• Probe temperature: -50~250 ℃
• Ambient temperature: -20~60 ℃
• Storage Temperature: -55℃～+125 ℃
• Output signal: 4～20mA, 4 ~ 20mA with HART communication/485/CAN bus communication
• Supply voltage: 12～28VDC (should be powered by the safety barrier)
• Fixation: Screw mounting M20×1.5,M27×2, Flange mounting DN25,DN40,DN50. Special specifications can be customized
• Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
• Long-term stability: ≤0.2%FS/Year
• Temperature drift: ≤0.02%FS/℃ ( range of 0～70℃)
• Explosion levels: Intrinsically Safe Exira ⅡC T6, Flameproof Ext II C T5
• Protection: IP67
• Intrinsically Safe parameters: Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH

Installation and commissioning

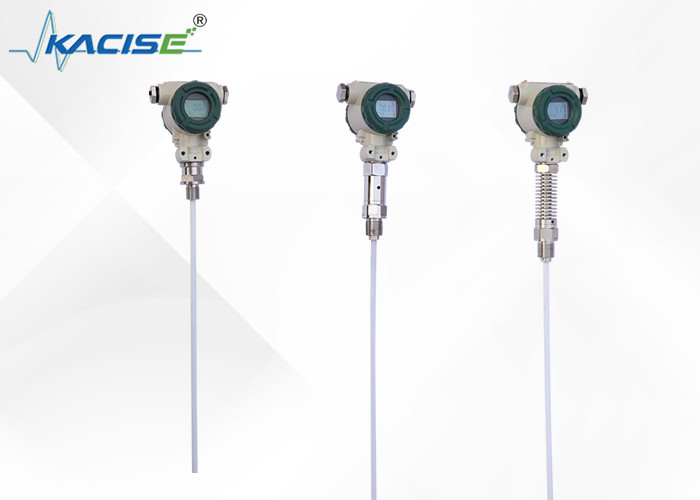

The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)

When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.

When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.

If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.

This product has been calibrated at the factory; he need for field adjustment may take the following methods:

A: Intelligent circuit debugging method:

Site-zero----- When the liquid level is located in the lowest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "Z" key click, the output current is automatically adjusted to 4mA.

Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.

B: Analog circuit debugging method:

When the liquid level in the next limit, use the screwdriver slowly rotating "Z" potentiometer, observe the ammeter readings close to 4mA

When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA

And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.

Note:

1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.

2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.

3. Wiring should be strictly in accordance with company instructions.

4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.

5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.

6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.

8. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.

9. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.

10. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.

11. The installation site should take effective lightning protection measures.

12. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.

13. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.

14. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.

Applications:

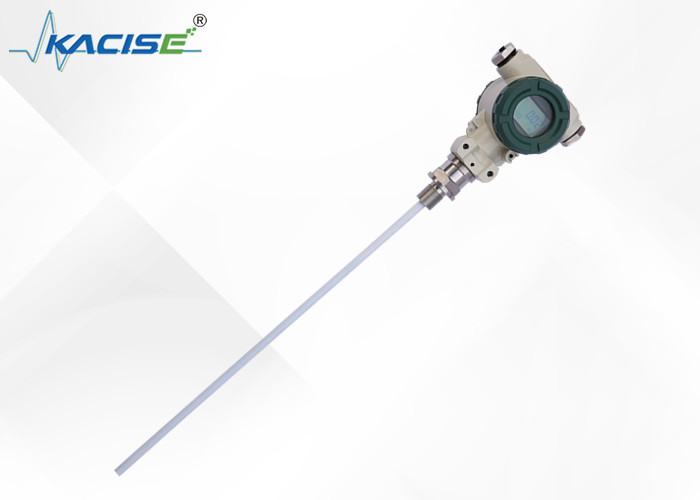

The KCF6021-1-625mm model is suitable for a wide range of applications, from industrial processes to automotive and marine industries. Its pressure range of -0.1MPa~32MPa, and a range of 0.01~30 M makes it ideal for measuring the level of various liquids, including oil, water, and chemicals.

The Fluid Level Meter is easy to install and operate, making it an ideal choice for those who require accurate and reliable level measurement with minimal maintenance. The capacitive oil level sensor is highly sensitive and provides accurate and reliable measurements that are not affected by temperature changes. Its temperature drift of ≤0.02%FS/℃ (Range Of 0～70℃) ensures that the measurements are consistent across a wide range of temperatures.

Whether you're working in a chemical processing plant, oil refinery, or marine vessel, the Kacise Fluid Level Meter is an indispensable tool for ensuring the safe and efficient operation of your equipment. Its accuracy of ±2%, ±5% ensures that you can rely on its readings, while its long-term stability of ≤0.2%FS/Year means that you can trust it to provide consistent and reliable measurements over time.

When you order the Kacise Fluid Level Meter, you can expect to receive it within 5 working days, packaged securely in a carton. The minimum order quantity is 2, and payment must be made in advance. So why wait? Order your Kacise Fluid Level Meter today and experience the benefits of accurate and reliable capacitive level measurement!

Customization:

Our products are manufactured in China (Mainland) and have a minimum order quantity of 2 units. Packaging details include a carton, and delivery time is 5 working days. Payment terms require 100% payment in advance.

The KCF6021-1-625mm Capacitive Fluid Level Sensor has a temperature drift within ≤0.02%FS/℃ (range of 0～70℃), and protection level of IP67. The power supply voltage is 2～28VDC (should be powered by the safety barrier), and the pressure range is -0.1MPa~32MPa. Additionally, it has a long-term stability of ≤0.2%FS/Year.

Our product customization services ensure that your specific requirements are met with precision and accuracy. Contact us today to discuss your needs and learn more about our capacitance level transmitter solutions.
