Product Description:

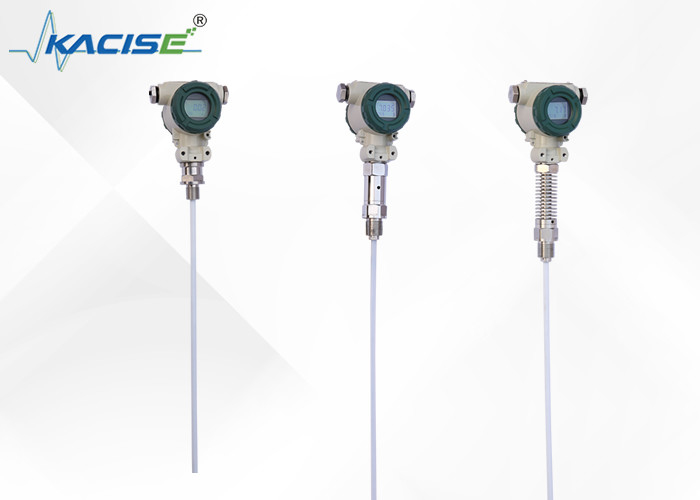

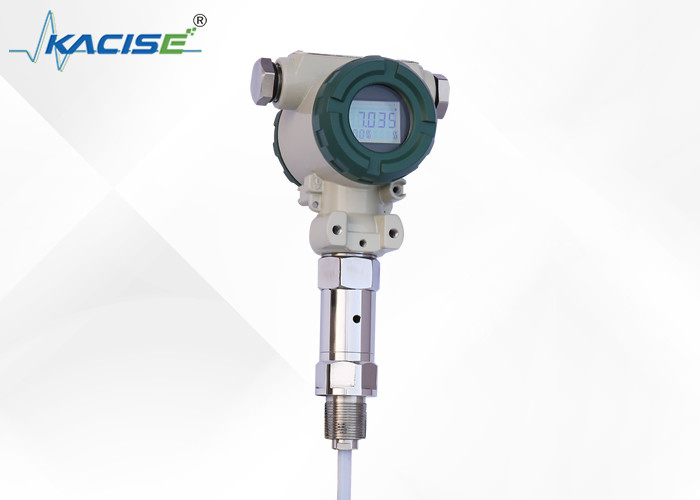

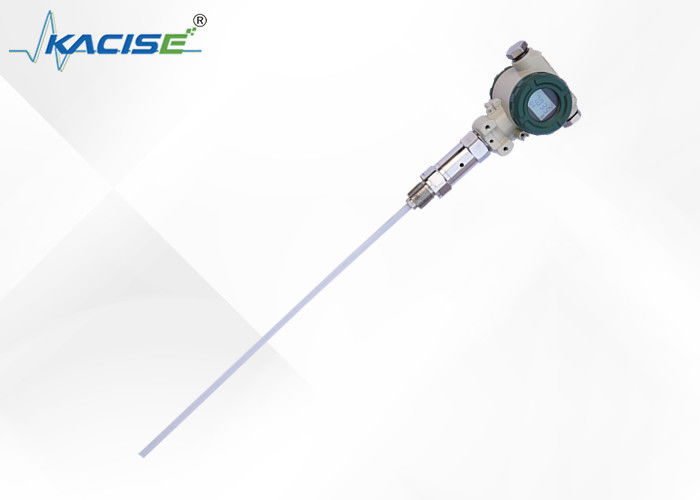

The KCF600 series capacitive level transmitter is designed to provide continuous detection of various liquids, even in harsh conditions with high temperatures and pressures, high levels of corrosion, and prone to crystallization and blockages. It is the perfect choice for measuring water, acid and alkali solutions, and the water level in the boiler, making it a versatile tool with no movable or flexible parts and the capability to resist impacts and provide easy installation.
Compared to traditional float, input and differential pressure types of level transmitters, the KCF600 provides several advantages, including high reliability, high precision, and reasonable cost. It features an advanced RF capacitive sensing circuit that is precisely compensated for temperature and linearity, and then transformed into a standard electrical signal, typically 4~20mA. The transmitter supports multiple communication protocols, including HART, CANBUS, and 485, thus making it an ideal choice for complex system configurations.
Furthermore, the KCF600 comes equipped with an automatic self-calibration feature that enables users to get automatic calibration for "zero" and "range" by using the two keys, making it adaptable to different requirements and complex situations as needed.
Features:
High Reliability and Minimal Maintenance
The device boasts of simple structures without any movable or elastic components. As a result, users can expect high reliability and minimal maintenance. Under normal circumstances, it does not require medium and small repairs regularly.
Variety of Signal Output
The device also offers a variety of signal output options that facilitate different system configurations. This unique feature allows for flexibility and ease of use.
Convenient for High-Temperature and High-Pressure Containers
The equipment is designed to be convenient for use with high-temperature and high-pressure containers. Furthermore, the measured data is not affected by the temperature, specific gravity, or shape of the container. Similarly, the impact of pressure is minimized.
Suitable for Corrosive Liquids
This system is particularly appropriate for the measurement of acid, alkali, and other corrosive liquids. Its materials are resistant to such corrosive substances, enabling it to provide accurate data in potentially hazardous conditions.
Excellent Protection
The device comes with perfect protection from overcurrent, overvoltage, and power polarity. These safety measures provide valuable protection for users and ensure the longevity of the product.
Technical Parameters:
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
Installation and commissioning
The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)
When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.
When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.
If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.
This product has been calibrated at the factory; he need for field adjustment may take the following methods:
A: Intelligent circuit debugging method:
Site-zero----- When the liquid level is located in the lowest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "Z" key click, the output current is automatically adjusted to 4mA.
Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.
B: Analog circuit debugging method:
When the liquid level in the next limit, use the screwdriver slowly rotating "Z" potentiometer, observe the ammeter readings close to 4mA
When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA
And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.
Note:
1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.
2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.
3. Wiring should be strictly in accordance with company instructions.
4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.
5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.
6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.
8. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.
9. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.
10. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.
11. The installation site should take effective lightning protection measures.
12. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.
13. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.
14. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.
Applications:
The Kacise Fluid Level Meter has a model number of KCF6021-1-625mm and is made in China (Mainland). The minimum order quantity is 2, and the product is packaged in a carton for delivery. The expected delivery time is 5 working days, and payment terms require 100% payment in advance.
One of the key features of the Kacise Fluid Level Meter is its accuracy. It has an accuracy rate of ±2% or ±5%, depending on the model. The temperature drift is also minimal, at ≤0.02%FS/℃ in a range of 0～70℃. This ensures that you can rely on the device to provide accurate readings even in fluctuating temperatures.
The wetted materials of the Kacise Fluid Level Meter are 316 Stainless Steel, 1Gr18Ni19Tior, or PTFE, which are all high-quality and durable materials. This ensures that the device will last for a long time and provide reliable performance.
The Kacise Fluid Level Meter is suitable for a variety of different applications and scenarios. It can be used in industrial settings to monitor the level of liquids in tanks and containers, or in laboratory settings to measure the level of liquid in test tubes and beakers. It can also be used in agricultural settings to monitor the level of water in irrigation systems.
The Kacise Fluid Level Meter has a storage temperature range of -55℃～+125 ℃ and a long-term stability of ≤0.2%FS/Year. This ensures that the device can be stored for long periods of time without any loss of performance or accuracy.
Overall, the Kacise Fluid Level Meter is an excellent choice for anyone who needs to monitor fluid levels. Whether you're in an industrial, laboratory, or agricultural setting, this device can provide accurate and reliable readings to help you manage your fluids effectively.
