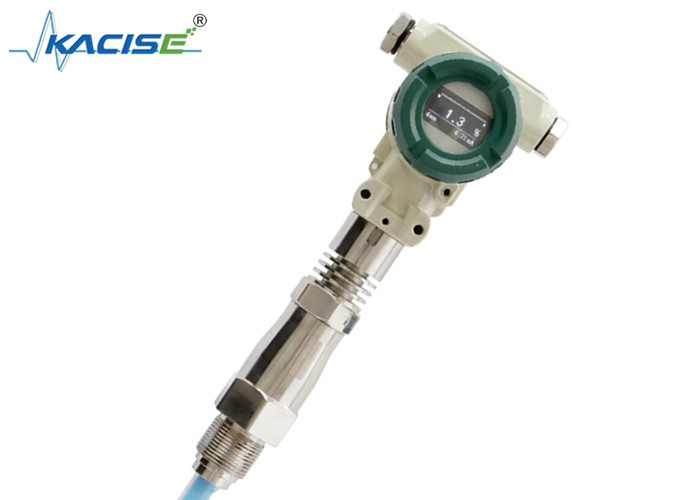

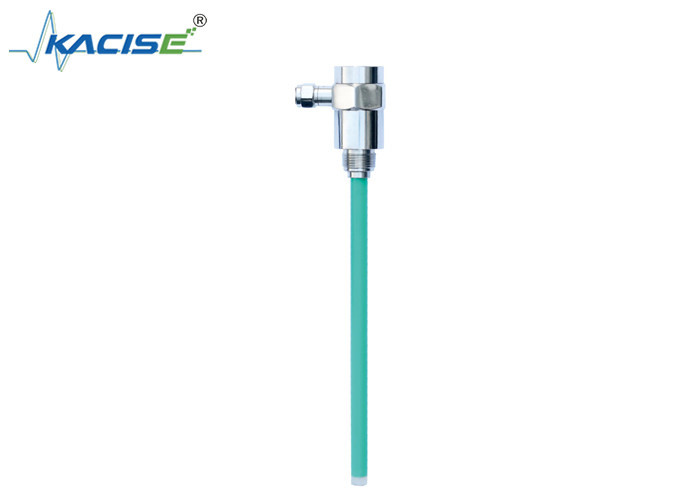

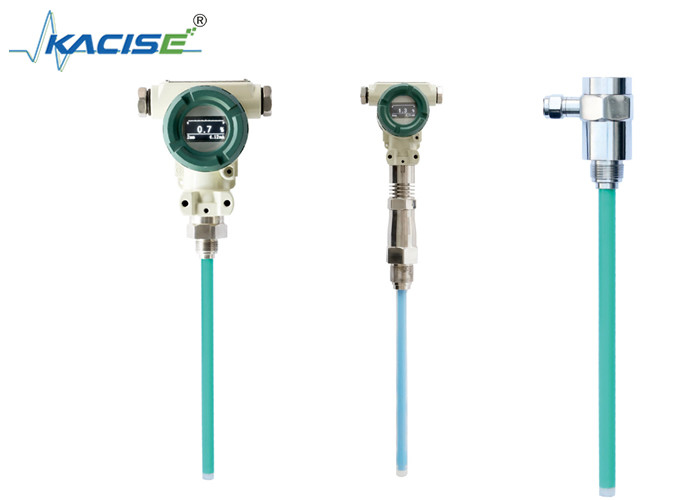

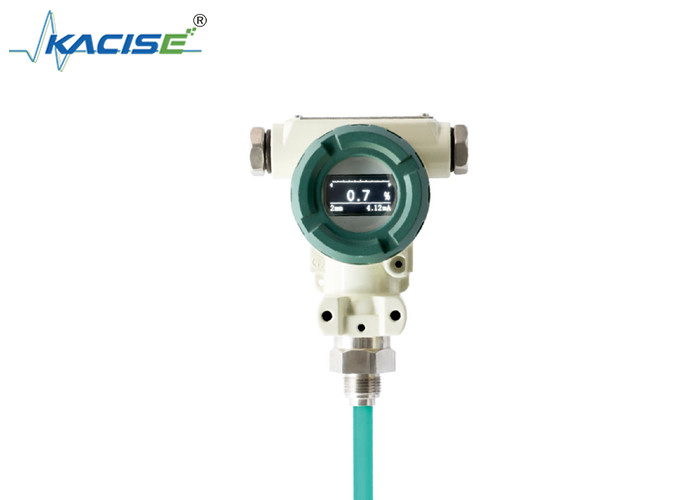

Product Description:
The KCF6052 capacitive liquid level sensor can be used in challenging measurement situations, such as those involving sewage, oil (with sheath), high viscosity, easy crystallization, easy adhesion, variable medium, foam, or aerosol influence. The sensor eliminates the need for moving or elastic parts, making it durable and impact-resistant, while also delivering high precision and quality cost performance. It is a versatile, adaptable, and reliable alternative to radio frequency admittance, radar, ultrasonic, magnetostrictive and other level sensors, capable of accurately measuring all kinds of media.
The product's radio frequency capacitance detection circuit is its core component, and it converts the detected signal into a standard electrical signal through precise temperature compensation and linear correction by the internal processor. The sensor utilizes tomographic scanning technology to automatically detect changes in the medium's dielectric constant and temperature and adapt to its change in density. It boasts excellent anti-hanging, anti-condensation, anti-bubble capability, making it adaptable to a variety of different and complex measurement requirements without requiring recalibration.
The sensor's' IP68 protection level ensures that it is highly robust and suitable for use even in harsh environments. It can be used for long-term and stable measurement, making it an ideal choice for any industry needs.
Feature:
- Automatic adaptation, automatic calibration, long-term stable output of real height value.
- Anti-hanging, anti-condensation, anti-bubble and other anti-fouling ability is super strong.
- Simple structure, no moving parts, high reliability, less maintenance.
- A variety of signal outputs are available for easy access to different systems.
- It is not affected by the temperature, specific gravity, pressure and other factors of the measured liquid.
- The highest temperature resistance is ≤250℃, the highest pressure resistance is ≤4MPa, and the service life is long.
- Good sealing performance, protection grade IP68 (except 6052).
- Perfect over-current, over-voltage, power polarity protection measures.
- Measuring cycle: 0.5 seconds
- Long-term stability: ≤0.1%FS/year
- Temperature drift: ≤0.02%FS/℃ (in the range of -40℃～+80℃)
- Measurement accuracy:
When the measurement range is within 300mm, the absolute error is within ±3mm (including 3mm);
When the measurement range is 300-700mm, the accuracy level is 1.0;
When the measurement range is 700-2000mm, the accuracy level is 0.5;
Technical Parameters:
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
Installation
Before installation, you must check the product model, technical parameters, installation port, and application environment in detail to ensure that the on-site sensor matches the installation environment. If you find any problems, contact the sales staff as soon as possible to confirm subsequent installation matters or return and exchange matters, so as to avoid damage caused by wrong use. Inaccurate measurement or product damage occurs.
Warning: It is forbidden to install live, disassemble, collide, drop, or hit hard
The liquid level sensor has a variety of installation and fixing methods to adapt to different site conditions. The specific installation is as follows.
1. The sensor is installed on a sealed metal container, which can be connected by flange or thread. When the measuring medium has no stirring, liquid impact, violent swing, etc., it can be installed in a plug-in type, as shown in the figure below: plug-in type installation
2. The sensor is installed on the container where there is stirring, liquid impact, violent swing, etc. in the measurement medium. The sensor can be installed with a connected pipe outside the container through a flange or threaded connection, as shown in the figure below: external installation
3. The measurement medium has stirring, liquid impact, violent swing, etc., and the container does not have the conditions for external installation of connecting pipes. When plug-in installation must be used, the sensor must be equipped with a protective tube. The measuring range exceeds 1000mm, and the container must be reserved. Or install a fixed bracket to ensure that the sensor is damaged due to violent impact of liquid.
4. The sensor can be connected by flange or thread when the non-metallic container or the installation surface is insulated from the inner edge of the container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal operation of the sensor cannot be guaranteed. Output, you need to install the auxiliary electrode yourself (use one end of the metal wire to connect the sensor shell/flange, and add a counterweight to the bottom of the container at the other end, and reserve a certain length for the wire to avoid damaging the wire), as shown in the figure below: On a non-metallic container , threaded or flange mounted
5. The sensor can be connected to the mounting bracket by flange or thread on the open container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal working output of the sensor cannot be guaranteed, and an auxiliary device needs to be installed by itself. Electrodes (connect one end of the metal wire to the sensor shell/flange, add a counterweight object to the bottom of the container at one end, reserve a certain length for the wire to avoid damage to the wire), as shown in the figure below: on the open container, install the bracket (the installation position is at a distance from The distance from the pool wall must be greater than 10CM, otherwise the measurement will be inaccurate.
Applications:
The Kacise Fluid Level Meter is a capacitive level sensor that can accurately measure the level of fuel, water, oil, and other liquids. It is powered by a safety barrier with a voltage range of 12～28VDC. The ambient temperature range is -20~60 ℃, making it ideal for use in harsh environments. With a range of 0.01~30 M, this product can be used in a wide variety of applications.
The Kacise Fluid Level Meter is designed to be reliable and accurate, with a temperature drift of ≤0.02%FS/℃ (range of 0～70℃). This makes it an ideal solution for applications where precise measurement is critical. The product is also protected with an IP67 rating, making it resistant to water and dust, and ensuring its longevity in harsh environments.
Some of the product application occasions and scenarios include:
- Automotive and transportation industries: The Kacise Fluid Level Meter can be used to measure the fuel level in cars, trucks, and other vehicles. It can also be used in the transportation of liquids, such as oil or water.
- Industrial manufacturing: The product can be used to monitor the level of liquids in tanks and vessels, ensuring that they are filled to the correct level and preventing spills or leaks.
- Agriculture: The Kacise Fluid Level Meter can be used in the irrigation systems to monitor the water levels in tanks and reservoirs.
- Oil and gas industry: The product can be used to monitor the level of liquids in storage tanks and pipelines, ensuring that they are filled to the correct level and preventing spills or leaks.
Overall, the Kacise Fluid Level Meter is a reliable and accurate capacitive fuel level sensor that is ideal for a wide range of applications. With its high-quality materials, efficient delivery time, and IP67 protection, it is a smart choice for businesses looking for a dependable and efficient solution for their fluid level measurement needs.
Support and Services:
Our Fluid Level Meter product comes with comprehensive technical support and services to ensure its proper functioning and accuracy. Our team of experts is available to assist with installation, calibration, and troubleshooting. We also offer maintenance and repair services to keep your device in optimal condition. In addition, we provide training and educational resources to help users understand the product and its capabilities. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
Our Fluid Level Meter comes in a sturdy cardboard box with foam inserts to ensure safe transportation. The meter is securely placed in the box to prevent any damage during shipping.
Shipping:
We offer free standard shipping to all customers in the United States. Orders are processed within 24 hours and shipped via UPS or USPS. Delivery typically takes 3-5 business days. For international orders, shipping rates and delivery times may vary depending on the destination.
