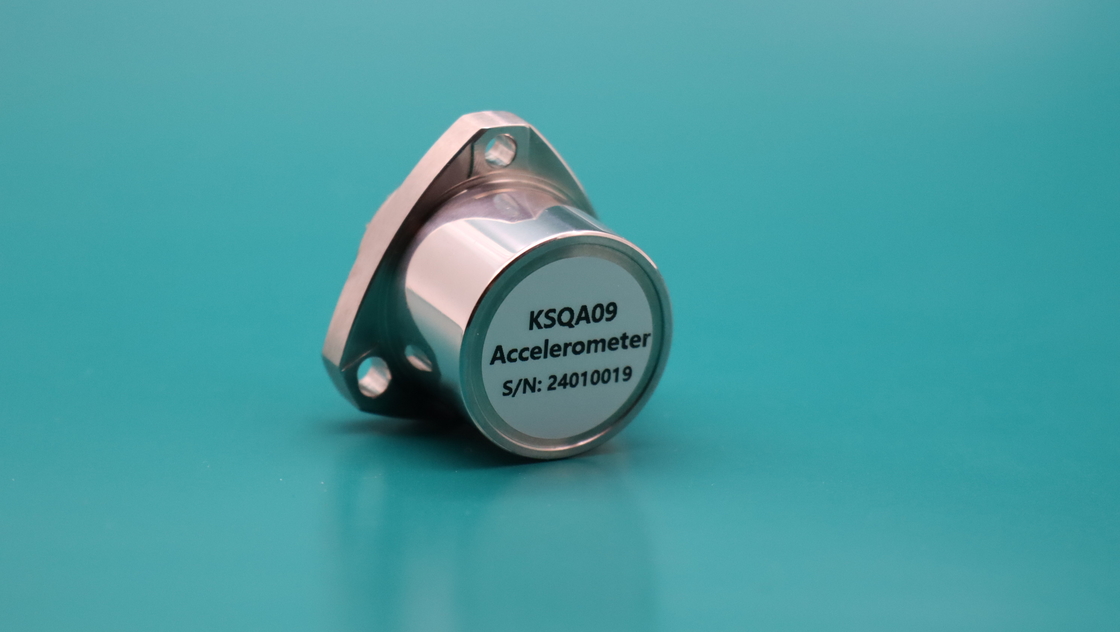

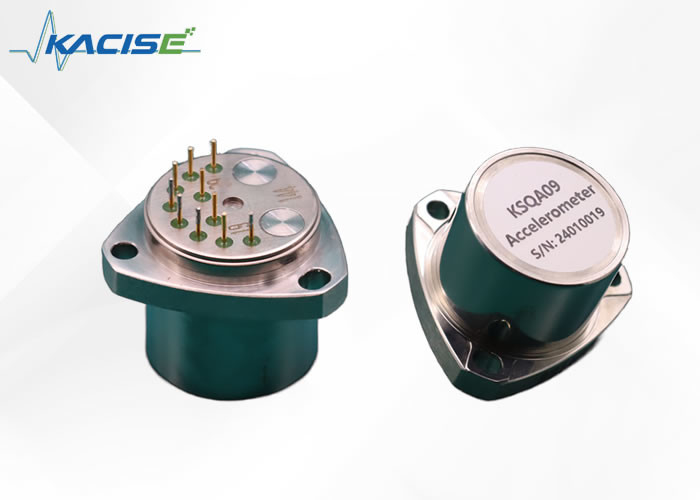

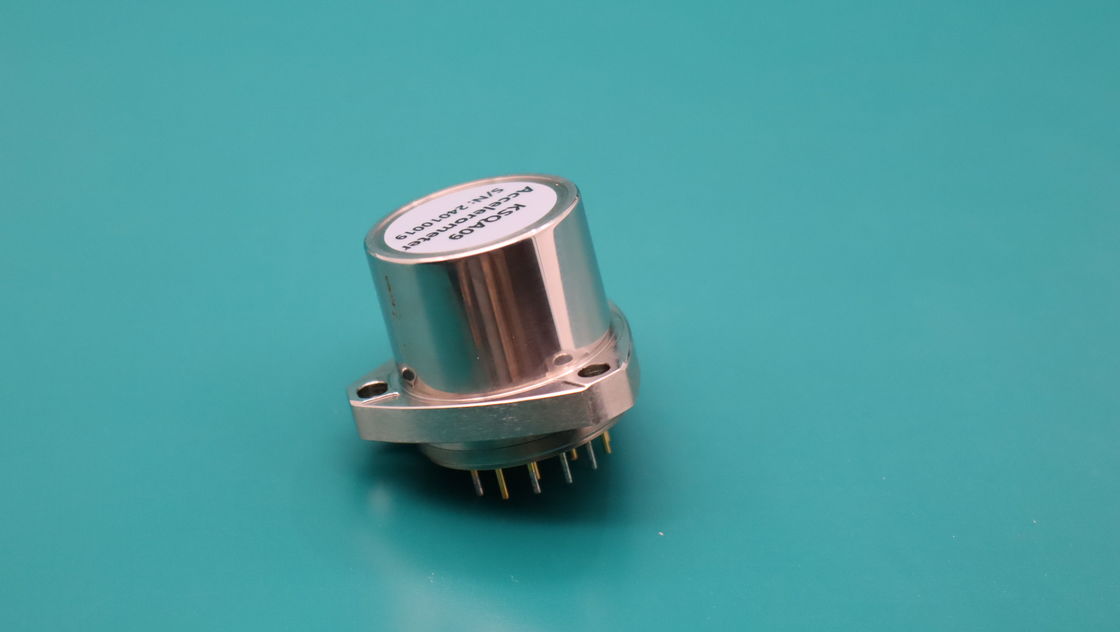

Product Description:
The Quartz flexible accelerometer is a precision instrument that consists of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia.
When the carrier is subjected to acceleration, the output of this accelerometer is precisely proportional to the input acceleration. In addition, our accelerometer has a current output form with a high output impedance.
Users can choose the sampling resistance based on their requirement without affecting the stability of the system.
Our quartz flexible accelerometer has formed a series of products, ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer.
We offer dozens of types of accelerometers, which are widely used in various fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and more.
The products we offer provide essential signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA09A |
KSQA09B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±40g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤30μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤30μg |
≤60μg |
| Scale Factor |
0.9 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤50ppm/°C |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤60ppm |
| Linearity |
≤40μg/g2 |
≤40μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø25.4×30mm |
Ø25.4×30mm |
| Weight |
≤80g |
≤80g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
