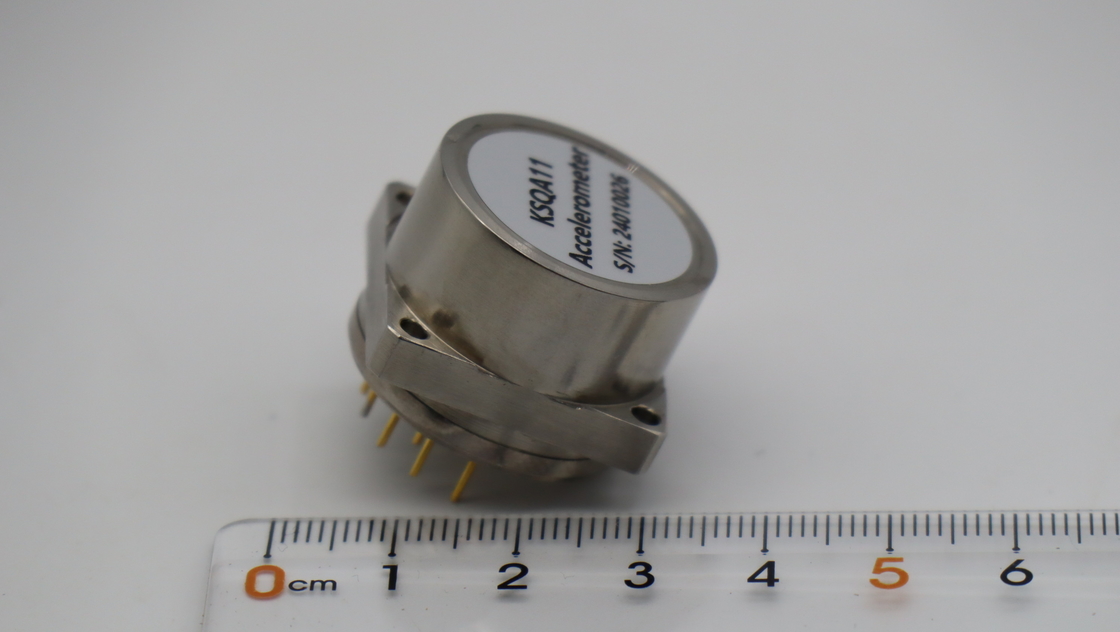

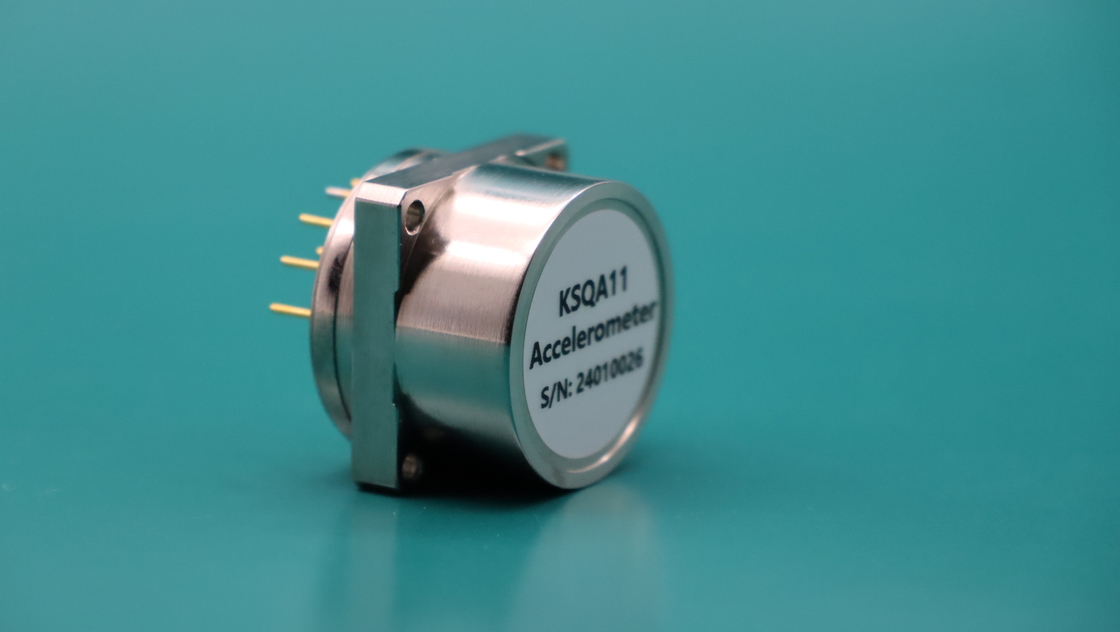

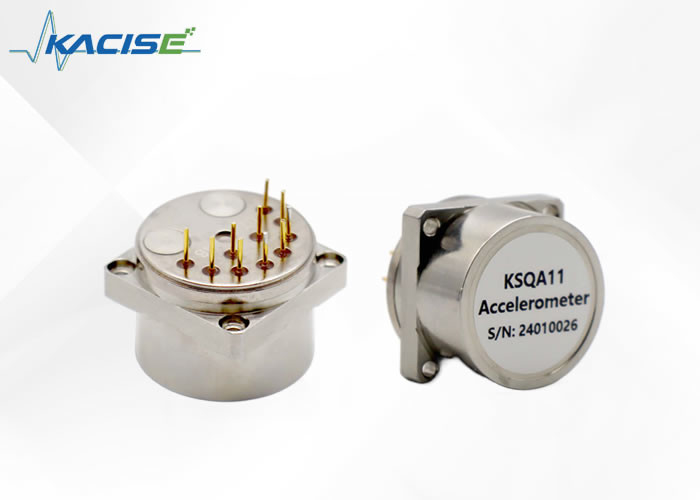

Product Description:
The Quartz flexible accelerometer is a precision instrument that is made up of a quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration. Unlike other accelerometers, our product has a current output form of high output impedance. This means that users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Our quartz flexible accelerometer comes in a variety of types and has formed a series of products. These range from the high-precision μg KSQA07 accelerometer used in satellite microgravity measurement, to the low-cost KSQA13 accelerometer that is designed to withstand harsh environments. In total, we offer dozens of different versions of our product, which is widely used in industries such as aerospace, aviation, navigation, shipbuilding, petroleum, and geotechnical engineering.
The applications of our accelerometer are extensive. It can provide signals for navigation, guidance, control, leveling, monitoring and other systems. Regardless of the requirements of the industry or the environment, our quartz flexible accelerometer is up to the task of measuring acceleration with precision and accuracy.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter |
KSQA11 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±30g |
| Bias |
≤8mg |
| Temperature Sensitivity |
≤40μg/°C |
| One-month Composite Repeatability (1σ) |
≤50μg |
| Scale Factor |
1.0 ~ 1.6mA/g |
| Temperature Sensitivity |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤80ppm |
| Linearity |
≤40μg/g2 |
| Size |
Ø25×25mm |
| Weight |
≤50g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+110°C |
| Shock |
500g |
| Vibration Peak Sine |
25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
