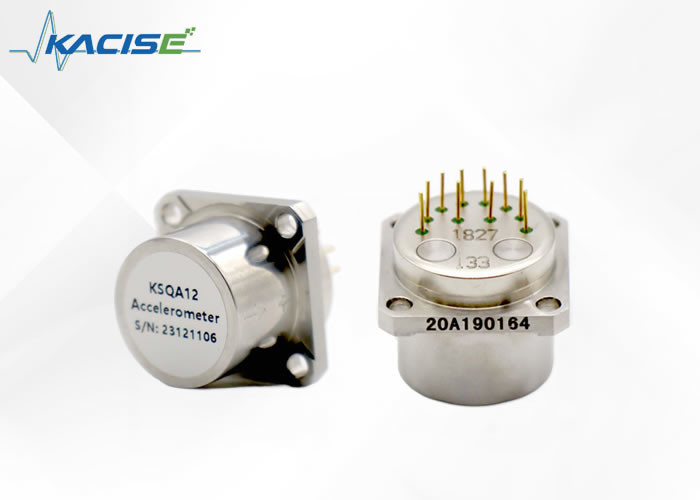

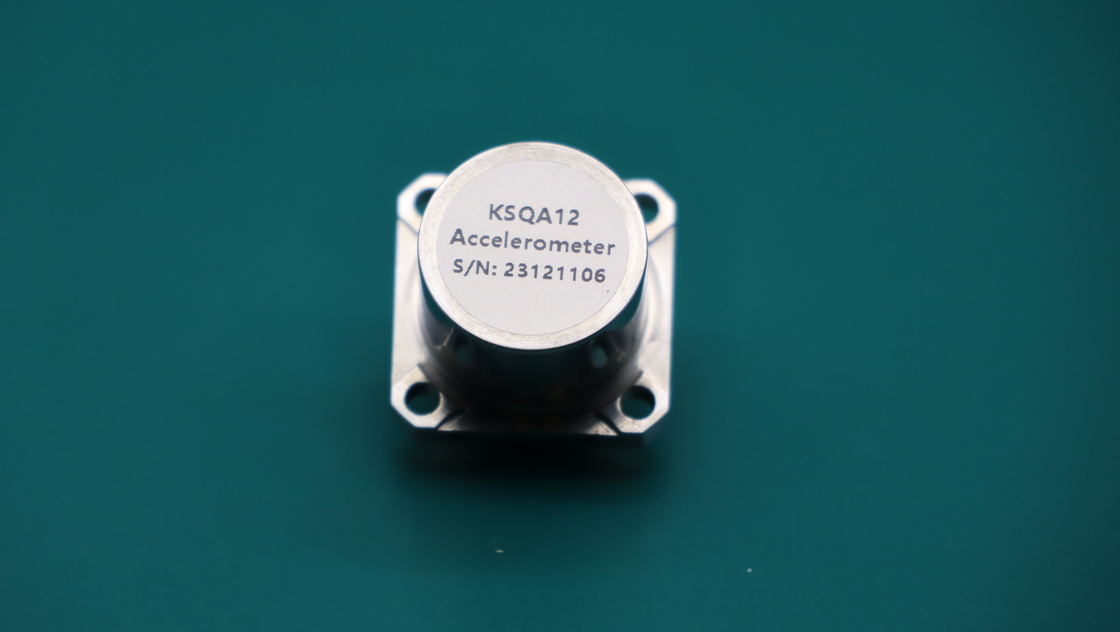

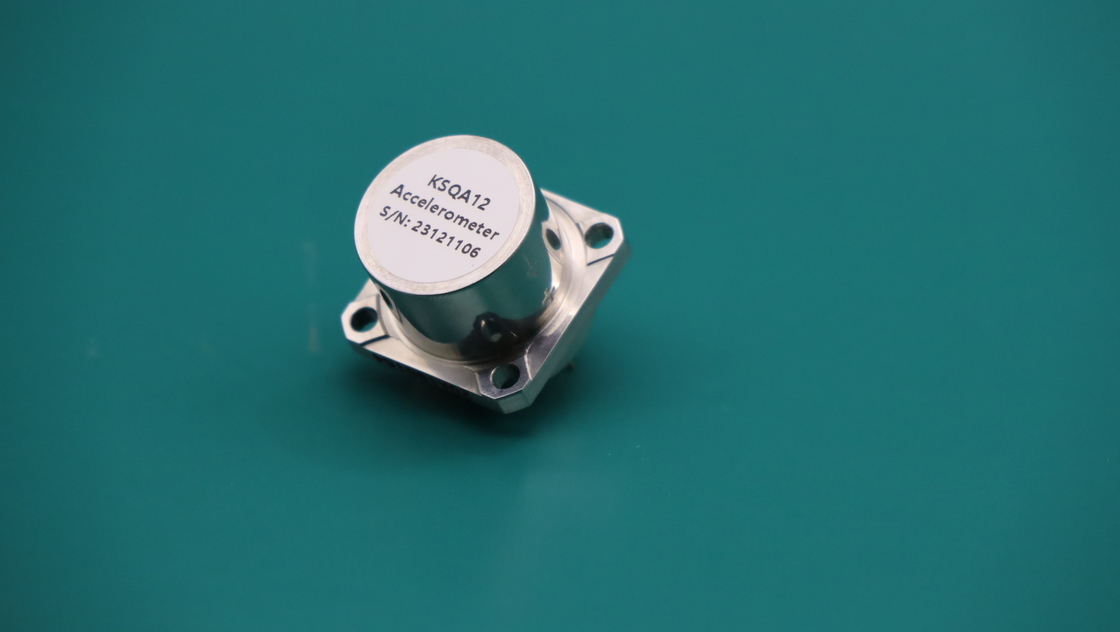

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that consists of a flexible support made of quartz glass and an advanced servo circuit based on the principle of inertia. This instrument produces an output that is precisely proportional to the input acceleration when the carrier is subjected to acceleration.
Our accelerometer has a current output form of high output impedance, which allows users to choose the sampling resistance according to their requirement without affecting the stability of the system.
Currently, our Quartz Flexible Accelerometer is available in a variety of models, ranging from the high-precision μg KSQA07 accelerometer used for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. We offer dozens of models which are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields.
The accelerometer provides signals for navigation, guidance, control, leveling, monitoring, and other systems, making it a versatile and essential tool in many industries.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter |
KSQA12A |
KSQA12B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±30g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤40μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤40μg |
≤80μg |
| Scale Factor |
0.6 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤60ppm/°C |
≤60ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤80ppm |
| Linearity |
≤50μg/g2 |
≤50μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø18.2×23.6mm |
Ø18.2×23.6mm |
| Weight |
≤35g |
≤35g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
