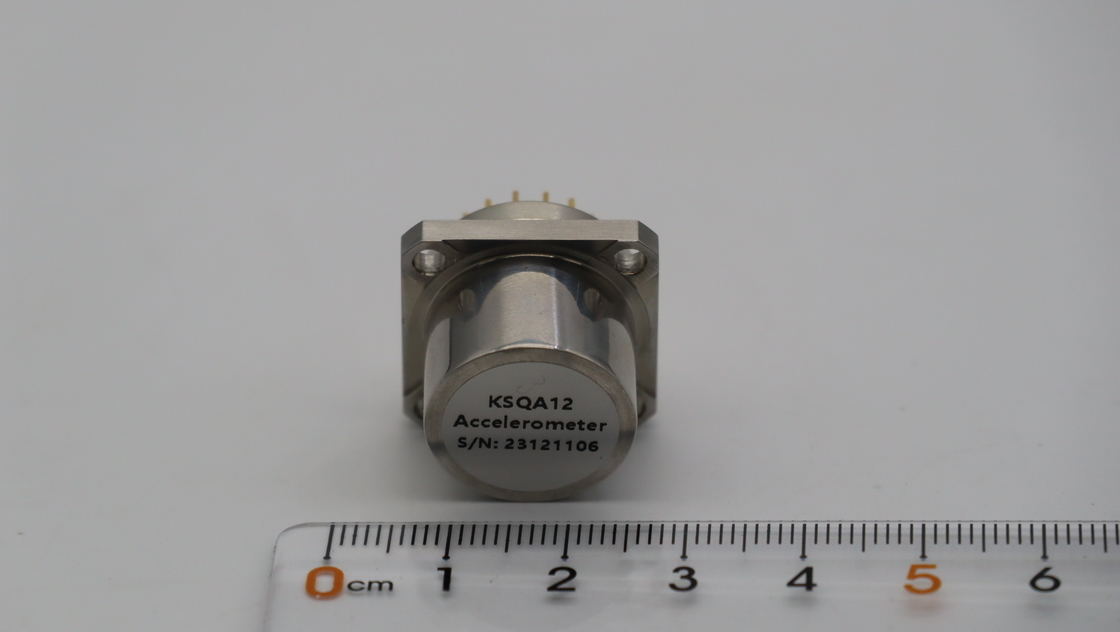

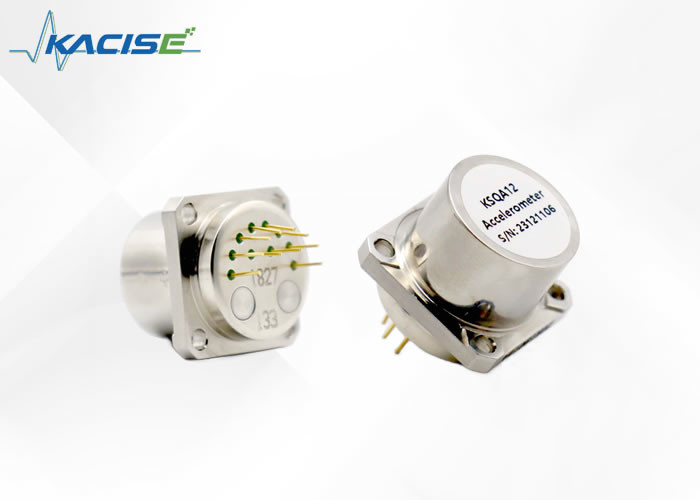

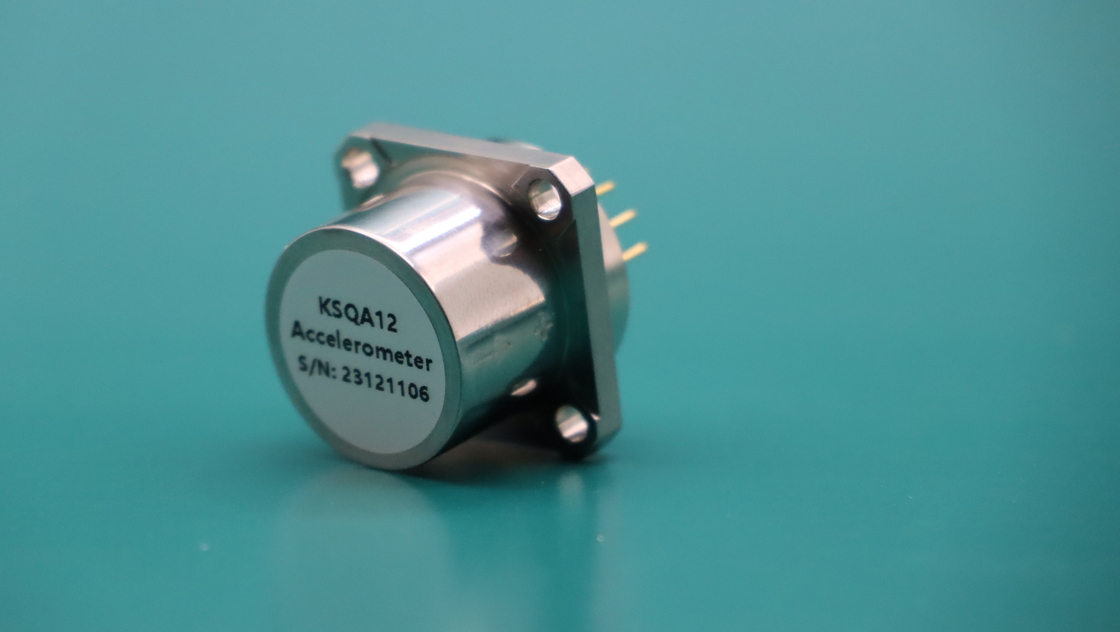

Product Description:
The Quartz flexible accelerometer is a precision instrument that comprises a quartz glass flexible support and an advanced servo circuit based on the principal of inertia. The output of the accelerometer is precisely proportional to the acceleration input when the carrier is subjected to acceleration. Our accelerometer has a current output form of high output impedance.
Users can choose the sampling resistance according to their requirement without affecting system stability. Currently, our quartz flexible accelerometer has formed a series of products, including types from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer.
There are dozens of different types of accelerometers available that are widely used in various fields. These fields include but are not limited to aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering. Our products provide signals that are useful for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter |
KSQA12A |
KSQA12B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±30g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤40μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤40μg |
≤80μg |
| Scale Factor |
0.6 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤60ppm/°C |
≤60ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤80ppm |
| Linearity |
≤50μg/g2 |
≤50μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø18.2×23.6mm |
Ø18.2×23.6mm |
| Weight |
≤35g |
≤35g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
