Product Description:

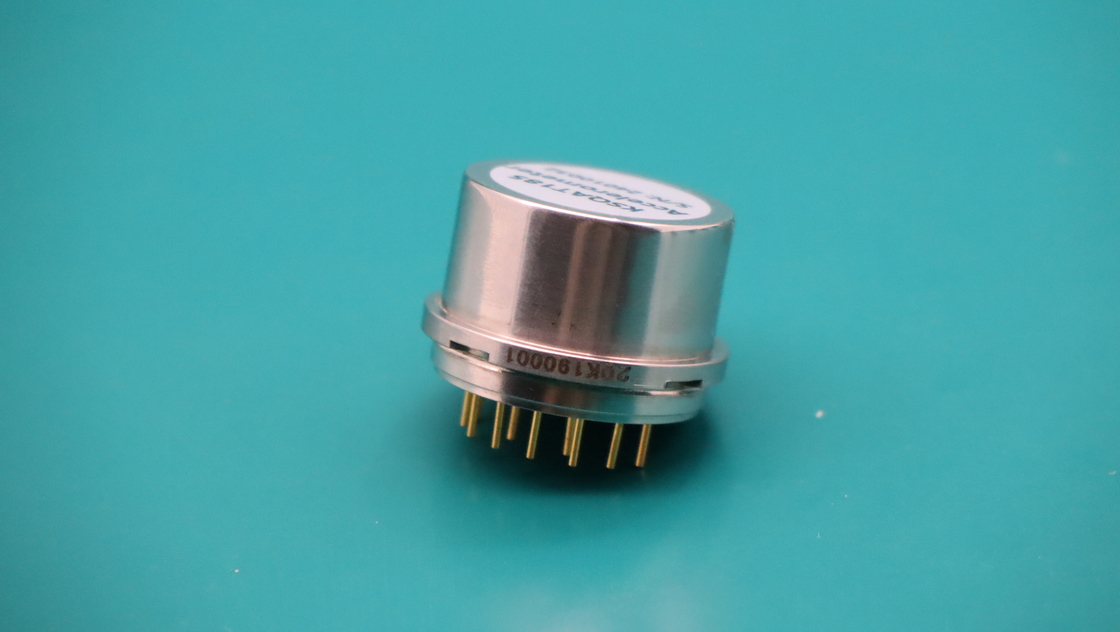

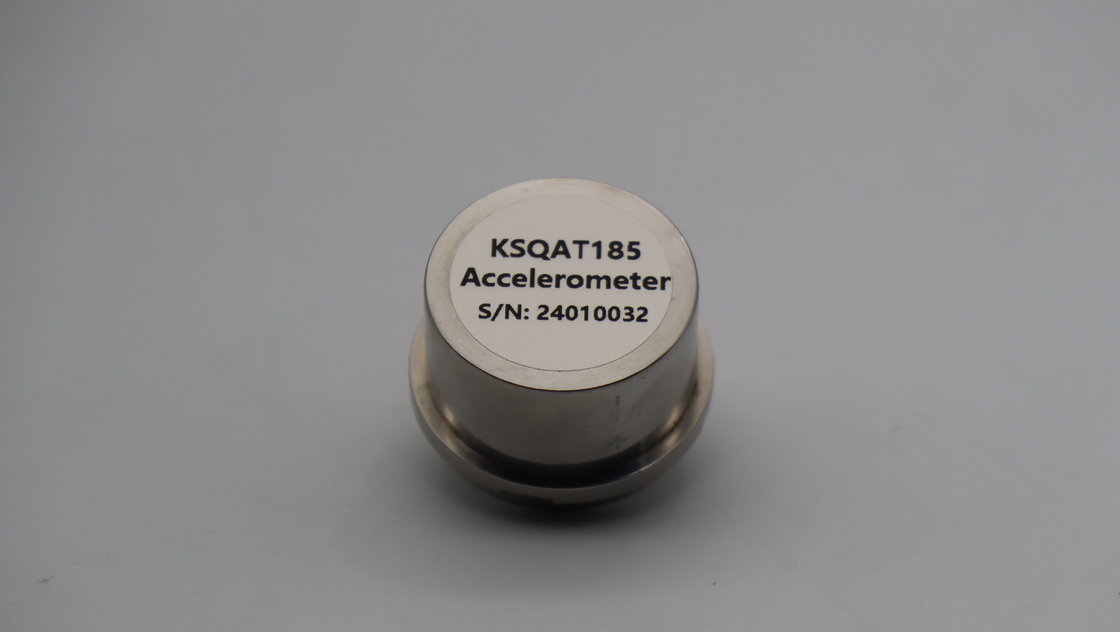

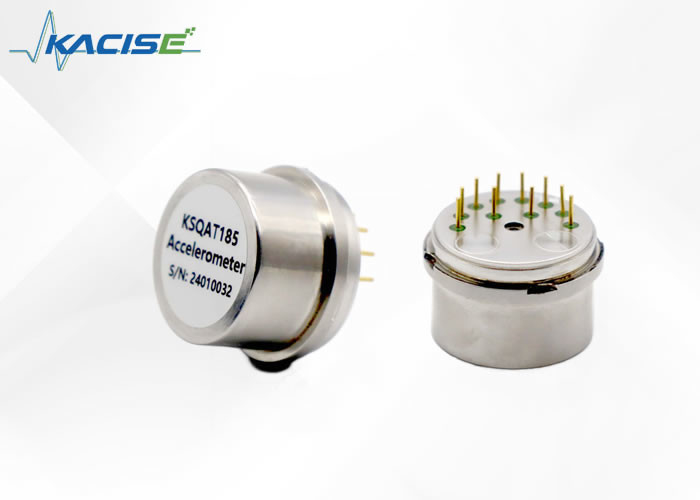

Quartz Flexible Accelerometer
The Quartz flexible accelerometer is a precision instrument made up of quartz glass flexible support and advanced servo circuit based on the principal of inertia.
When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Currently, our quartz flexible accelerometer has formed a series of products with types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer, with as many as dozens available.
The product range is widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields, providing signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAT160 |
KSQAT185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
±10g |
| Bias |
≤20mg |
≤20mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤150μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
1.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤150ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤150ppm |
| Size |
Ø25×25mm |
Ø25×25mm |
| Weight |
≤60g |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+160°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+170°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
