Name: KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR301M
Price: 431.00 USD
Availability: InStock

خونه > محصولات > حسگر ژایروسکوپ الکترونیک >

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

MEMS quartz gyroscope ±100°/s range,5Vdc quartz gyroscope sensor,fluid level meter gyroscope sensor

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Place of Origin:

CHINA

نام تجاری:

KACISE

گواهی:

Model Number:

KSGYR301M

با ما تماس بگیرید

درخواست نقل قول

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

جزئیات محصول

ولتاژ ورودی:

0.2 5 VDC

Input Current:

< 50 mA

دامنه اندازه گیری:

100 درجه در ثانیه

جانبداری:

0.03 درجه/ثانیه

ثبات تعصب:

20 درجه در ساعت

تکرارپذیری تعصب:

20 درجه در ساعت

برجسته کردن:

MEMS quartz gyroscope ±100°/s range,5Vdc quartz gyroscope sensor,fluid level meter gyroscope sensor

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

محصولات مرتبط

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

بهترین قیمت رو بدست بیار

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

بهترین قیمت رو بدست بیار

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

بهترین قیمت رو بدست بیار

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

Product Overview

The KSGYR301M MEMS Quartz Gyroscope utilizes advanced quartz MEMS technology to measure angular velocities across multiple axes (configurable to customer requirements), with digital output via serial port.

Key Specifications

Attribute	Value
Input Voltage	5±0.2 Vdc
Input Current	< 50 mA
Measurement range	±100°/s
Bias	≤0.03°/s
Bias stability	≤20°/h
Bias repeatability	≤20°/h

Product Features

Mass production capability
Fast startup time (2 seconds)
Wide operating temperature range (-40°C to +65°C)
Low power consumption (≤50 mA)
High reliability design
Compact dimensions (22.4×22.4×9 mm)
Serial output (RS422)

Technical Specifications

Parameter	KSGYR301M
Power Requirements
Power Voltage	5V DC
Power @ 25°C	0.3W
Supply current	≤50 mA
Performance
Range	±100°/s
Output	RS422
Size	22.4mm×22.4mm×9mm
Run-up time	2s
Bias	≤0.03°/s
Bias stability	≤20°/h
Random walk	≤0.25°/√h
Scale factor nonlinearity	≤0.02%
Noise	≤0.01°/s/g
Resolution	≤0.005°/s
Bandwidth	≥90Hz
Weight	≤50g
Environmental
Operating temperature	-40°C~+65°C
Random vibration	6.06g
Shock	200g

Applications

Airborne instrument measurement
Robotics systems
Automated testing equipment
Attitude reference systems
Control systems
Flight testing
Platform stabilization

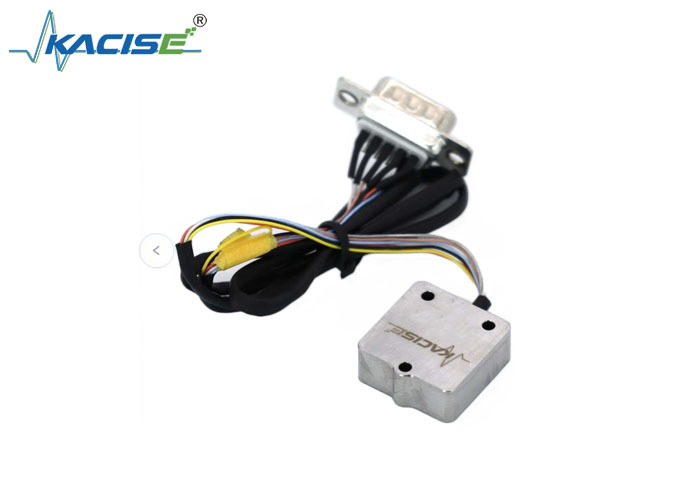

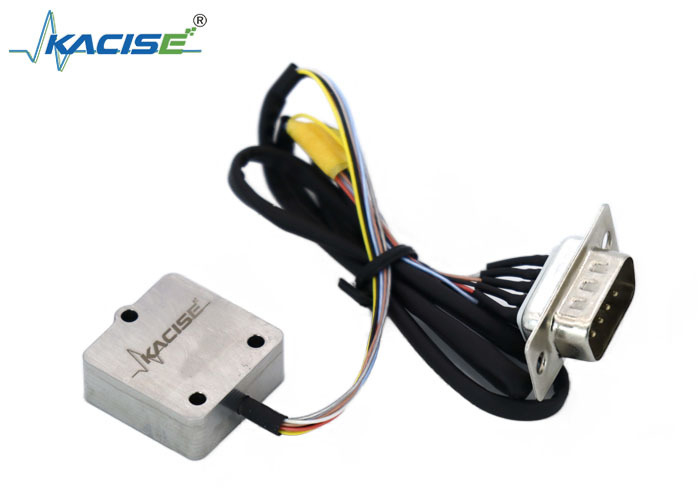

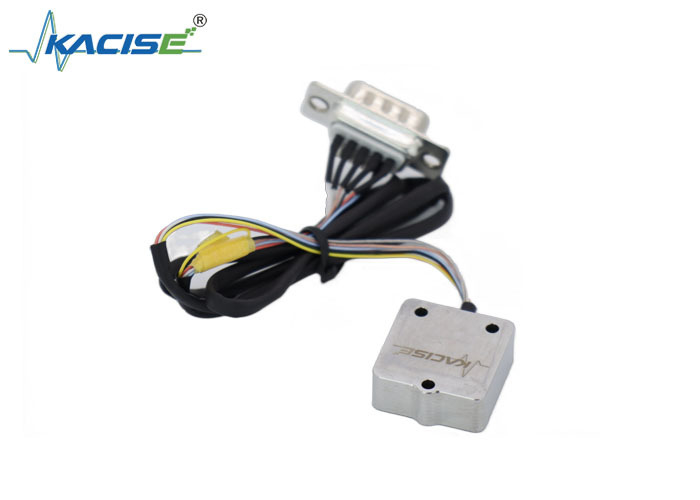

Product Image

Dimensions

Unit: mm
