Name: KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ksgyr312f-l
Price: 431.00 USD
Availability: InStock

خونه > محصولات > حسگر ژایروسکوپ الکترونیک >

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

3-axis fiber optic gyroscope sensor,fiber optic gyroscope with low bias,compact electronic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

محل منبع:

چین

نام تجاری:

KACISE

گواهی:

شماره مدل:

ksgyr312f-l

با ما تماس بگیرید

درخواست نقل قول

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

جزئیات محصول

ولتاژ عرضه:

+5 ولت

ابعاد:

71.5 × 68 × 45 میلی متر

زمان شروع:

≤3s

تعصب (100s صاف ، دمای ثابت):

≤0.1 درجه/ساعت

اتلاف برق (دمای کامل):

<4w

وزن:

<320G

برجسته کردن:

3-axis fiber optic gyroscope sensor,fiber optic gyroscope with low bias,compact electronic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کار

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Three-axis gyroscope sensor for robot, Nonlinearity ≤0.05(%FR), zero-bias stability 12(°/h)

بهترین قیمت رو بدست بیار

±5V Supply Voltage Electronic Gyroscope Sensor for Robotics Applications

بهترین قیمت رو بدست بیار

Cross Coupling ≤2 % and Nonlinearity ≤0.05 %FR MEMS Gyro for High Precision Navigation

بهترین قیمت رو بدست بیار

Fiber optic gyroscopes for aircraft navigation and platform stability testing with ≤0.01(°) / H Bias drift

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

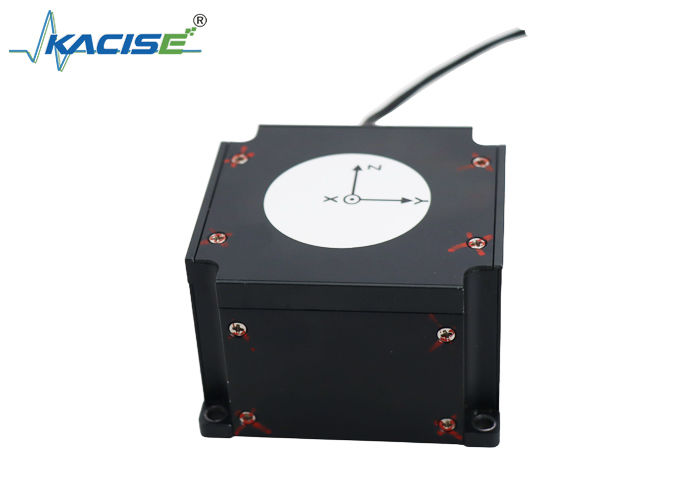

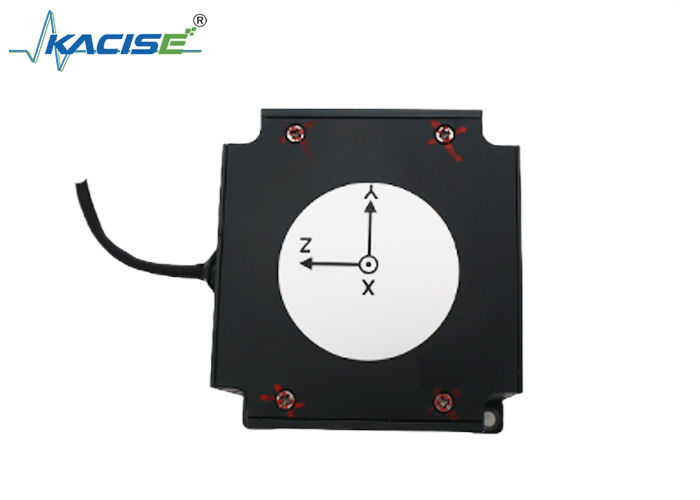

KSGYR312F-L Three Axis Fiber Optic Gyroscope

Product Overview

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. Its digital closed-loop detection circuit precisely extracts optical path differences caused by external angular speed, enabling real-time angular velocity signal detection through voltage signal modulation and feedback control.

The system consists of an optical angular velocity sensitive unit and signal detection components, providing triaxial angle increment data and internal temperature information.

Key Specifications

Attribute	Value
Supply voltage	+5V
Dimensions	71.56845mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Precisely measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Performance Characteristics

Parameter	Value
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s

Environmental Specifications

Parameter	Value
Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C
