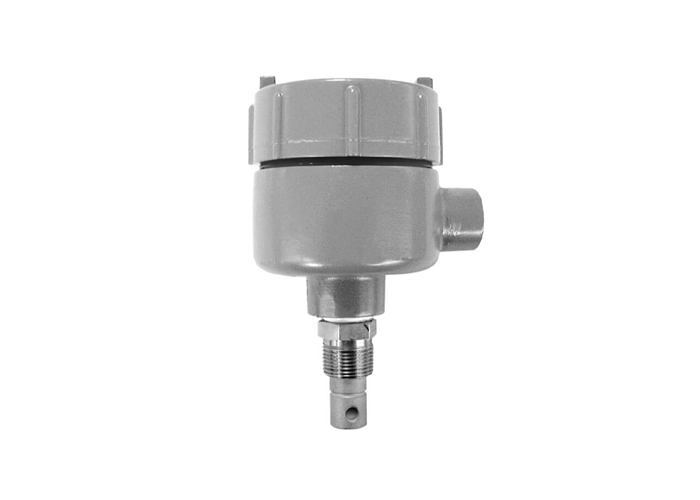

Name: High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: سنسور SC42/SX42
Price: 5,000.00 USD
Availability: InStock

خونه > محصولات > سنسور کیفیت آب >

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

316 Stainless Steel Conductivity Sensor,2-Electrode Design Water Quality Sensor,Pt1000 Temperature Element Contacting Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

نام تجاری:

Yokogawa

شماره مدل:

سنسور SC42/SX42

با ما تماس بگیرید

درخواست نقل قول

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

جزئیات محصول

ثابت:

0.1/cm ؛ 1.0/سانتی متر

عنصر دما:

PT1000

مصالح ساختمانی:

316 فولاد ضد زنگ

طراحی:

2-Electrode

برجسته کردن:

316 Stainless Steel Conductivity Sensor,2-Electrode Design Water Quality Sensor,Pt1000 Temperature Element Contacting Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

بهترین قیمت رو بدست بیار

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

بهترین قیمت رو بدست بیار

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

بهترین قیمت رو بدست بیار

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

High Pressure/High Temperature Conductivity Sensor SC42/SX42

High Pressure - High Temperature Contacting sensor primarily designed for Boiler Blowdown and Condensate Leak detection applications. These conductivity cells have extremely high temperature and pressure ratings: the threaded types can handle 16 bar at 200°C and the flanged types can handle 40 bar at 250°C.

Product Selection

Specification	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore (Flanged)
Model Code	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore
Cell Constants	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm
Ranges	0.4-2,000 µS/cm; 4.0-5,000 µ/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	7 bar/100 PSIG	16 bar/228 PSIG	40 bar/570 PSIG
Maximum Temperature	100°C/212°F	up to 200°C	up to 250°C
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp	1" NPT	2" 600lb ANSI Flange
Integral Cable	NO	NO	NO
Materials Of Construction	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Design Style	2-Electrode	2-Electrode	2-Electrode

Key Features

Designed for high-pressure, high-temperature applications
Ideal for boiler blowdown and condensate leak detection
Available in small bore and large bore configurations
Multiple installation connection options
Constructed from durable 316 stainless steel
2-electrode design for reliable conductivity measurement

برچسب ها：

سنسور روغن در آب,سنسور کدورت آب,سنسورهای نظارت بر کیفیت آب

316 Stainless Steel Conductivity Sensor,2-Electrode Design Water Quality Sensor,Pt1000 Temperature Element Contacting Sensor

water quality monitoring sensors
