Name: SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC8SG
Price: 5,000.00 USD
Availability: InStock

خونه > محصولات > سنسور کیفیت آب >

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

2-electrode system Conductivity Sensor,4-electrode system Conductivity Sensor,0.01 cm-1 cell constant Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

نام تجاری:

Yokogawa

شماره مدل:

SC8SG

با ما تماس بگیرید

درخواست نقل قول

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

جزئیات محصول

اصل اندازه گیری:

سیستم 2 الکترود یا 4 الکترود

ثابت:

0.01 cm-1 یا 10 cm-1 (برای سیستم 2 الکترود) 10 cm-1 (برای سیستم 4 الکترود)

فشار:

1000 kPa Max. (حداکثر 500 kPa برای ردیاب های دارای اتاق های پلی پروپیلن)

RTD برای جبران دما:

PT1000 (ساخته شده در سنسور)

ساخت و ساز:

محاصره ضد باران (سازگار با JIS C0920)

اتصال فرآیند:

پیچ یا جریان

برجسته کردن:

2-electrode system Conductivity Sensor,4-electrode system Conductivity Sensor,0.01 cm-1 cell constant Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، L/C ، D/A

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

بهترین قیمت رو بدست بیار

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

بهترین قیمت رو بدست بیار

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

بهترین قیمت رو بدست بیار

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

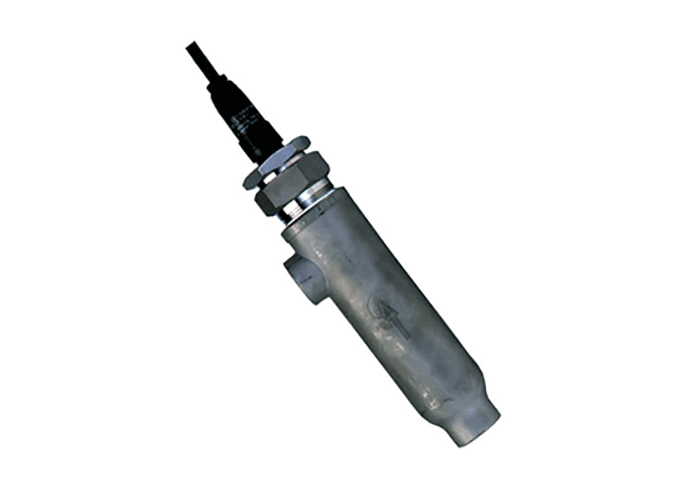

Conductivity Sensor SC8SG

Yokogawa supplies superior on-line analyzers for monitoring and controlling the conductivity of liquids and solutions. Our product line includes the SC450G four-wire conductivity/resistivity converter, SC202G and SC202S two-wire conductivity/resistivity transmitters, and SC100 panel mount conductivity converter, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC8SG conductivity sensor is engineered to meet demanding ultrapure water requirements in semiconductor and pharmaceutical industries, while also serving traditional water quality measurement needs in power plants and chemical applications. Available in multiple mounting configurations including screw-in, flow-through with screw joint, and flow-through with flange.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	2-electrode or 4-electrode system
Cell Constants	0.01 cm⁻¹ or 10 cm⁻¹ (2-electrode system) 10 cm⁻¹ (4-electrode system)
Measuring Ranges	0 - 0.5 μS/cm to 0 - 100 μS/cm (0.01 cm⁻¹ cell constant) 0 - 1 mS/cm to 0 - 1000 mS/cm (10 cm⁻¹ cell constant)
Temperature Range	0 to 100°C (130°C max for 0.01 cm⁻¹ detectors, excluding polypropylene chambers)
Pressure	1000 kPa max (500 kPa max for polypropylene chamber detectors)
Flow Rate	No specific limits, though <20 l/min recommended for flow-through detectors
Temperature Compensation	Pt1000 RTD (built into sensor)
Construction	Rainproof encapsulation (JIS C0920 compliant)
Weight	Screw-in: ~1.3 kg (without cable) Flow-through (SCS14 chamber): ~3.1 kg Flow-through (SCS14 flanged): ~4.5 kg Flow-through (polypropylene chamber): ~2.7 kg Flow-through (polypropylene flanged): ~3.2 kg Cable: 0.3 kg (5.5 m), 0.5 kg (10 m)
Process Connection	Screw-in or flow-through
