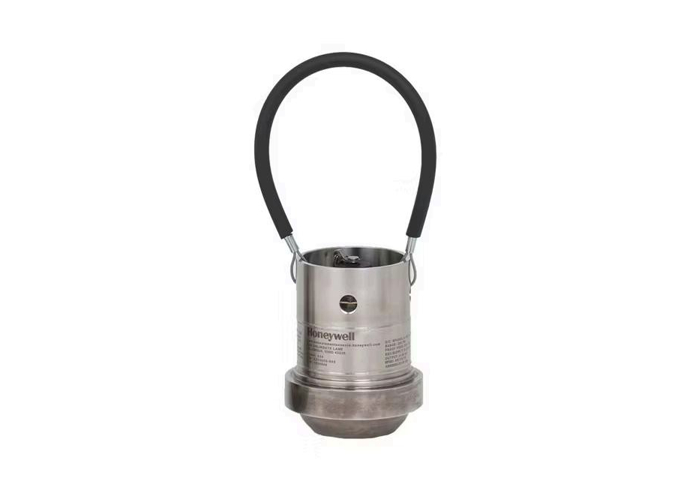

Name: Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: مدل 434
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20,000 psi Pressure Transducer,±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

نام تجاری:

Honeywell

شماره مدل:

مدل 434

با ما تماس بگیرید

درخواست نقل قول

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

جزئیات محصول

دیافراگم استاندارد:

0 psi تا 20000 psi

دقت:

± 0.2٪ FSS BFSL

خروجی:

4 میلی آمپر تا 20 میلی آمپر، 2 سیمی

دما، عملکرد:

-40 درجه سانتی گراد تا 125 درجه سانتی گراد [-40 درجه فارنهایت تا 257 درجه فارنهایت]

دما، جبران شده:

-40 درجه سانتی گراد تا 85 درجه سانتی گراد [-40 درجه فارنهایت تا 185 درجه فارنهایت]

قطعات خیس شده:

Inconel® 718 (سازگار با NACE)

برجسته کردن:

0 psi to 20,000 psi Pressure Transducer,±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

ویدیو

Universal Precision Pressure Sensor Transmitter For Industry Process Control

بهترین قیمت رو بدست بیار

ویدیو

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

بهترین قیمت رو بدست بیار

ویدیو

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

بهترین قیمت رو بدست بیار

ویدیو

GXPS800 Extreme Environment Heat Resistant ±0.1Accuracy Pressure Transmitter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Honeywell Model 434 Wing Union Pressure Transducers

Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.

Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.

Value to Customers

Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.

Differentiators

High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
Protective cage option available.
Welded construction for enhanced durability.

Part Numbers

Part Number	Description
060-P774-01	BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01	BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01	BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01	BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01	BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
