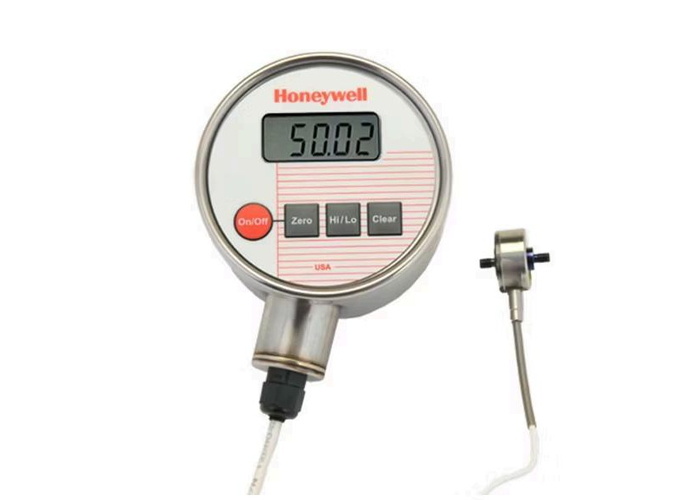

Honeywell Model LK Digital Force Indicator

The Model LK Digital Force Indicator is a highly portable force measurement device with 4½-digit display and ±0.25% to ±0.30% FS accuracy. This versatile instrument measures tension and compression forces from 1 lb to 10,000 lb with male thread attachments.

Designed for field use, this compact unit operates on a 9V battery and features peak capture functionality to record maximum force readings. The remote load sensor location protects the electronic components, while stainless steel construction ensures durability in demanding environments.

Key Features

Wide measurement range up to 10,000 lb
Tension and compression measurement capability
High and low force capture function
Zero offset/tare functionality
NIST traceable calibration
Field-selectable engineering units (lb, N, kN, g, kg)
Customer recalibration option
Optional accessories: carrying case, panel mounting ring, NEMA 4 rating

Performance Specifications

Characteristic	Measure
Range	1 lb to 10,000 lb (see detailed range table)
Accuracy	±0.25% to ±0.30% FS
Update speed	3 per second (selectable to 10/second)

Environmental Specifications

Characteristic	Measure
Temperature, operating	-1°C to 71°C (30°F to 160°F)
Rating	NEMA 2 standard (NEMA 4 optional except model LKT)

Electrical Specifications

Characteristic	Measure
Display	LCD, 4½-digit, 13mm (0.5 in) high
Power supply (Model LKW)	1 or 2 9-volt batteries (included)
Power supply (Model LKT)	110V AC adapter @ 60Hz (included)
Power supply (Model LKV)	11VDC to 32VDC @ 100mA
Electrical connection	0.9m (3 ft) cable standard for model LKV

Mechanical Specifications

Characteristic	Measure
Case material	Stainless steel

Detailed Range Specifications

Range (lb)	0 to 1	0 to 5	0 to 25	0 to 50	0 to 100	0 to 250	0 to 500
Incremental display steps	0.001	0.005	0.02	0.01	0.02	0.05	0.1

Range (lb)	0 to 1000	0 to 2000	0 to 3000	0 to 4000	0 to 5000	0 to 7500	0 to 10000
Incremental display steps	0.2	0.5	2	2	1	2	2

Mounting Dimensions and Characteristics

Ranges (lb)	T	D	H	C	F	A	B
1 lb	#6-32 UNC	25.4mm [1.00 in]	19.5mm [0.75 in]	6.4mm [0.25 in]	2.8mm [0.11 in]	12.5mm [0.50 in]	9.7mm [0.38 in]
5 to 10 lb	#6-32 UNC	25.4mm [1.00 in]	11mm [0.45 in]	6.4mm [0.25 in]	1.3mm [0.05 in]	7.9mm [0.31 in]	4.8mm [0.19 in]
25 to 100 lb	#10-32 UNF	25.4mm [1.00 in]	13mm [0.52 in]	6.4mm [0.25 in]	0.8mm [0.03 in]	12.5mm [0.50 in]	6.4mm [0.25 in]
250 to 1000 lb	1/4"-28 UNF	25.4mm [1.00 in]	13mm [0.52 in]	9.7mm [0.38 in]	0.8mm [0.03 in]	12.5mm [0.50 in]	6.4mm [0.25 in]
2000 to 3000 lb	3/8"-24 UNF	25.4mm [1.00 in]	18mm [0.72 in]	12.5mm [0.50 in]	0.8mm [0.03 in]	12.5mm [0.50 in]	9.7mm [0.38 in]
4000 to 5000 lb	1/2"-20 UNF	32.0mm [1.25 in]	24mm [0.94 in]	16mm [0.63 in]	0.8mm [0.03 in]	12.5mm [0.50 in]	9.7mm [0.38 in]
7500 to 10000 lb	3/4"-16 UNF	35mm [1.38 in]	28mm [1.10 in]	22mm [0.88 in]	0.8mm [0.03 in]	12.5mm [0.50 in]	9.7mm [0.38 in]

Part Numbers

Part Number	Description
060-CS69477840963	LKW50CZAY: MODEL LK, 50 LBS
060-CS84411145067	LKW100TZ4: MODEL LK, 100 LBS
060-CS97186458897	LKW1KCZ4Y: MODEL LK, 1,000 LBS
77-01638-04	LKW50CZ, A: MODEL LK, 50 LBS
77-01663-03-01	LKW25KZ: MODEL LK, 25 LBS
77-01687-02	LKW10KZ: MODEL LK, 10 LBS
77-01687-05	LKW100KZ: MODEL LK, 100 LBS
77-01687-07	LKW500KZ: MODEL LK, 500 LBS
77-01687-12	LKW5KKZ: MODEL LK, 5K LBS
77-01687-13	LKW7.5KKZ: MODEL LK, 7.5K LBS
77-01687-14	LKW10KKZ: MODEL LK, 10K LBS
77-01687-15	MODEL LK, 1,000 GRAMS
77-01765-05	LKW100CZ: MODEL LK, 100 LBS
77-01765-06	LKW250CZ: MODEL LK, 250 LBS
77-01765-07	LKW500CZ: MODEL LK, 500 LBS
77-01765-12	LKW5KCZ: MODEL LK, 5K LBS
77-01765-14	LKW10KCZ: MODEL LK, 10K LBS
77-01765-16	LKW2KTZ: MODEL LKW, 2K LBS
77-01821-06	LKT250KT: MODEL LK, 250 LBS
77-01863-01	LKW5KCC: MODEL LK, 5K LBS
77-01871-14	LKW10KCZ4: MODEL LK, 10K LBS
