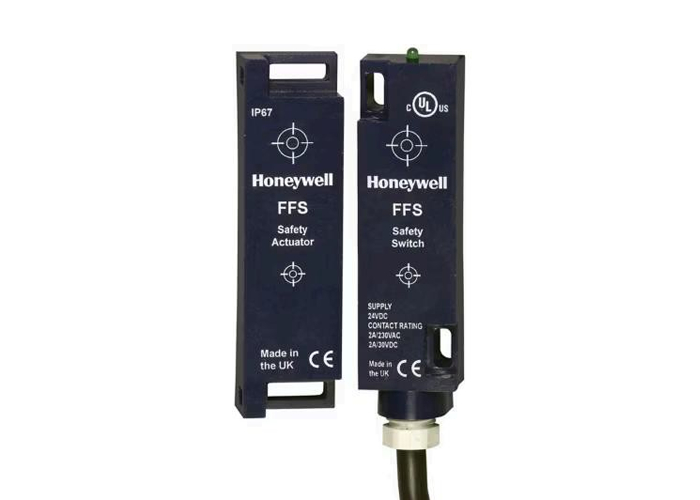

Name: Honeywell FFS Series Non-Contact Safety Switch with 7 mm to 10 mm Sensing Distance IP67 ABS Plastic Housing
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: سری FFS
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Honeywell FFS Series Non-Contact Safety Switch with 7 mm to 10 mm Sensing Distance IP67 ABS Plastic Housing

7 mm to 10 mm Sensing Distance Safety Switch,IP67 Non-Contact Safety Switch,ABS Plastic Housing FFS Series Switch

IP67 Non-Contact Safety Switch

ABS Plastic Housing FFS Series Switch

نام تجاری:

Honeywell

شماره مدل:

سری FFS

با ما تماس بگیرید

درخواست نقل قول

Honeywell FFS Series Non-Contact Safety Switch with 7 mm to 10 mm Sensing Distance IP67 ABS Plastic Housing

جزئیات محصول

مواد محفظه کلید و محرک:

پلاستیک

مدار سنسور ولتاژ تغذیه:

24 کنتاکت Vdc (در صورت وجود محرک) 1NC/1NO، 2NC

طراحی تماس:

مغناطیسی فعال می شود

رتبه تماس ایمنی:

120/230 Vac, 2 A 24 Vdc, 2 A

لرزش/شوک:

50 هرتز تا 100 هرتز / 10 گرم

برجسته کردن:

7 mm to 10 mm Sensing Distance Safety Switch,IP67 Non-Contact Safety Switch,ABS Plastic Housing FFS Series Switch

IP67 Non-Contact Safety Switch

ABS Plastic Housing FFS Series Switch

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

بهترین قیمت رو بدست بیار

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Honeywell FFS Series ABS Housings

7 mm to 10 mm sensing distance. Two volt-free outputs (2NC or 1NC/1NO). IP67. CE, UL. LED indicator.

Product Description

Honeywell FFS switches are tamper-proof, standalone safety switches designed to switch relays, contacts, or safety relays directly. By eliminating the separate control unit, Honeywell enables electronic switching technology in smaller, simpler safety systems.

The FFS is suitable for lower category safety systems, providing two volt-free outputs (2NC or 1NC/1NO). It can be used with safety relays for higher performance requirements. A green LED provides clear indication of FFS safety switch contacts.

Value to Customers

Non-contact design minimizes installation and setup
Pre-wired cable with color-coded leads or integral Micro AC ½ in - 20 quick disconnect simplifies electrical connection
Actuator can approach switch head-on, slide-by, or rotation/hinge for flexible installation

Potential Applications

Equipment and machinery guards
Can forming and filling (aluminum, plastic, and steel)
Packaging equipment
Pick and place assembly equipment
Plastic molding equipment
Printing machinery
Semiconductor equipment
Textile machinery
Woodworking equipment

Differentiation

Non-contact operation requires no mechanical linkage
Integral green LED indicates NC switch contact status
Up to two safety contacts when actuated for safety circuit inputs
Optional auxiliary contact closes when actuator moves out of operating range

Features

Non-contact design requires no operating force
ABS plastic housing for switch and actuator
Green LED for guard status indication
Compact size: 19.0 mm × 19.0 mm × 82.5 mm [0.75 in × 0.75 in × 3.25 in]
Choice of 1 NC/1 NO or 2 NC contacts
Pre-wired cable lengths: 3 meters or 10 meters, or integral Micro AC ½ in - 20 quick disconnect
IP67 environmental sealing
CE, UKCA and UL 508 Certifications

Specifications

Characteristic	Parameter
Description	Coded magnetically actuated non-contact safety switch, FFS Series
Certifications	UL (UL508) File E37138 cUL (C22.2 No.14) File 37138 CE DOC A346, UKCA DOC B346 Reference standards: EN 60947-5-1; Low voltage switchgear and controlgear EN 60947-5-3; Low voltage switchgear and controlgear EN 61000-6-2; Electro magnetic compatibility for immunity EN 61000-6-4; Electro magnetic compatibility for emissions EN 60204-1; Safety of machinery, Electrical equipment of machines EN 62061; Safety of machinery, Functional safety EN ISO 13849-1; Safety of machinery, Safety-related parts of control systems
Switch and actuator housing material	ABS plastic
Termination	Pre-wired 6 conductor color-coded cable Ø 7.3 mm [0.29 in] 3 meters or 6 meters length Micro AC ½ in - 20 quick disconnect, 6 pin male with dual keyway
Supply voltage sensor circuit	24 Vdc
Contacts (when actuator present)	1NC/1NO, 2NC
Contact design	Magnetically actuated
Safety contact rating	120/230 Vac, 2 A 24 Vdc, 2 A
Auxiliary contact rating	120/230 Vac, 2 A 24 Vdc, 2 A
LED indicator	Green LED "ON" when actuator present
External fuse (customer supplied)	1.6 A fast acting
Environmental sealing	IP67 for switch and actuator
Operating temperature	-25 °C to 55 °C [-13 °F to 131 °F]
Vibration/shock	50 Hz to 100 Hz/10 g

FFS Series Order Guide: ABS Plastic Housing

Catalog Listing	Description
FFS-11-03	Switch and actuator, 1NC safety and 1NO auxiliary contacts, 3 meters pre-wired cable
FFS-11-10	Switch and actuator, 1NC safety and 1NO auxiliary contacts, 10 meters pre-wired cable
FFS-11-QD	Switch and actuator, 1NC safety and 1NO auxiliary contacts, Micro AC ½ in - 20 quick disconnect integral connector
FFS-11-QD05	Switch and actuator, 1NC safety and 1NO auxiliary contacts, Micro AC ½ in - 20 quick disconnect integral connector, 5 meters cable with integral 4 pin female connector
FFS-20-03	Switch and actuator, 2NC safety contacts, 3 meters pre-wired cable
FFS-20-10	Switch and actuator, 2NC safety contacts, 10 meters pre-wired cable
FFS-20-QD	Switch and actuator, 2NC safety contacts, Micro AC ½ in - 20 quick disconnect integral connector
FFS-ACT	Replacement actuator for FFS Series switches
