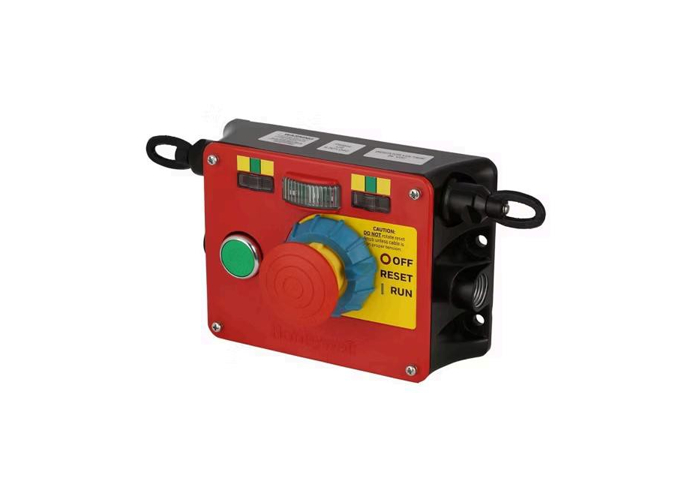

Name: Honeywell 2CCP Series Dual Head Cable-Pull Safety Switch with IP54 and NEMA 1 Ratings for Emergency Stop Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: سری 2CCP
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Honeywell 2CCP Series Dual Head Cable-Pull Safety Switch with IP54 and NEMA 1 Ratings for Emergency Stop Applications

IP54 Cable-Pull Safety Switch,NEMA 1 Emergency Stop Switch,Dual Head MICRO SWITCH

NEMA 1 Emergency Stop Switch

Dual Head MICRO SWITCH

نام تجاری:

Honeywell

شماره مدل:

سری 2CCP

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

شوک زدن:

15 گرم

جریان حرارتی نامی (Ith):

10 A

مقاومت ضربه‌ای رتبه‌بندی شده (Uimp):

2500 V

ولتاژ عایق نامی (Ui):

300 ولت

جریان آبکاری طلایی قابل استفاده (در صورت وجود):

1 میلی آمپر تا 50 میلی آمپر، حداکثر 60 Vdc/125 Vac حداکثر.

برجسته کردن:

IP54 Cable-Pull Safety Switch,NEMA 1 Emergency Stop Switch,Dual Head MICRO SWITCH

NEMA 1 Emergency Stop Switch

Dual Head MICRO SWITCH

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

بهترین قیمت رو بدست بیار

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

Honeywell 2CCP Series Dual head cable pull. UL, cUL, CE, SIL3 capable. lP54. NEMA 1. Silver contacts.

The 2CCP, Honeywell's newest MICRO SWITCH Cable-Pull Safety Switch, provides an economical switching solution for an easily accessible emergency stop function along conveyors and machines. The 2CCP provides reliable performance, a highly configurable platform, easy installation, simplified maintenance, and faster equipment restart to meet the needs of a wide range of end-users.

APPLICATIONS

Long conveyor systems found in:

Warehouses and distribution centers

Post and parcel facilities

Food & beverage or pharmaceutical production

Large machinery found in:

Packaging equipment

Assembly lines like automotive

Woodworking and textiles

2CCP FEATURES & BENEFITS

FEATURES	BENEFITS
Dual direction	Covers cable spans up to 656 ft*. Fewer number of switches required per installation creates savings on unit and wiring costs
Configurable platform	Many options available within one package size. 576 possible SKU combinations. Options for conduit ports, contacts, actuation direction, LED, E-stop, and restart button
Direct-opening, snap-action contacts	Contacts are held closed when the actuating cable is under proper tension and the reset knob is set to the run position. Upon activation, a cam positively open the NC contacts. The snap-action operation causes the mechanical latch almost immediately
Latches on both slackened and pulled cable	Provides tension loss monitoring due to wire breakage or thermal expansion
Wide tolerance zone for cable tensioning	Protects against nuisance tripping and the effects of thermal expansion. ±30°F for cable runs up to 500 ft. Longer runs achievable at smaller temperature windows
Integral reset mechanism	NC switch contacts remain open until the unit is reset by properly tensioning the cable and manually rotating the blue reset knob to "Run" condition following switch actuation
Restart button	Equipment is not allowed to restart automatically after the cable-pull switch is reset. The integrated restart button can be used to send a signal back to the PLC for equipment start. This is in lieu of installing a local control station or using an existing HMI
Improved LED	More light intensity and better side viewing ensures switch status can be seen easily from a distance. Available in 24 Vdc, 120 Vac, or 240 Vac
E-stop button	Provides E-stop access even at the extreme ends of the span
Replaceable front cover	Units with an E-stop are prone to damage. Impact-resistant plastic cover has been designed for fast and economic replacement. LED and restart button are mounted to base of unit and do not require replacement or rewiring
Improved tension window	Magnified window and clear markings makes system setup and rope tension maintenance faster and more precise
External mounting holes	Front cover does not need to be removed to access mounting holes creating easier installation and maintenance access
Large wiring cavity with straight through wiring	Easier access to contact block allows for faster and simpler wiring
Optional rear conduit port	Option to route wiring through the back of the unit for easier installation and to eliminate looping cable

TABLE 1. SPECIFICATIONS

DESIGNATION AND UTILIZATION CATEGORY	RATED OPERATIONAL CURRENT IE (A) AT RATED OPERATIONAL VOLTAGE (V)
	24 V	120 V	240 V
AC15 (Contact Rating)	A300	-	6 A
DC13 (Contact Rating)	Q300	2.8 A	0.55 A

Rated thermal current (Ith): 10 A

Rated impulse withstand (Uimp): 2500 V

Rated insulation voltage (Ui): 300 V

Usable gold-plated current (if applicable): 1 mA to 50 mA, 60 Vdc max./125 Vac max.

Shock: 15 g

Conditional short-circuit current: 1000 A

Sealing: IP54; NEMA 1

Pollution code: 3

Operating temperature range: -40 °C to 85 °C [-40 °F to 185 °F]

Short-circuit protective device (type/maximum rating): Class J fuse (10 A/600 V)

Vibration: 10 Hz to 500 Hz, 5 g

Mechanical life: 375,000 operations

Complies with: • Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU • Machinery Directive 2006/42/EC only as the directives relate to the components being used in a safety function • IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 • EN ISO 13850 compliance • UL Category NISD, Emergency Stop Devices

MCTF (Mechanical Life): >375,000 cycles with single-sided confidence limit of 100 % MCTF (Electrical Life): >50,000 cycles with single-sided confidence limit of 87.5 % Highest SIL Capability: SIL3 (HFT:1), IEC 61508-2 Proof Test Interval: 1 Year
