Name: GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: سری GKE
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

IEC 20 mm mounting Safety Key-Operated Switch,IP66/67 rated Dual Entry Safety Switch,NEMA 1 4X 12 13 compliant GKE Series Safety Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

نام تجاری:

Honeywell

شماره مدل:

سری GKE

با ما تماس بگیرید

درخواست نقل قول

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

جزئیات محصول

مواد تماس تلفنی:

آلیاژ نقره

مواد کلید محرک:

فولاد ضد زنگ

اتصال الکتریکی:

مجرای 20 میلی متری یا 0.5-14 NPT با هر نقطه سیم کشی در سوئیچ یک پیچ ترمینال رزوه ای

گزینه های تماس/سوئیچ¹:

1NC/1NO عملکرد آهسته BBM، 1NC/1NO اکشن سریع، 2NC عملکرد آهسته

طراحی تماس:

دو شکستگی، جدا شده الکتریکی (Zb)

برجسته کردن:

IEC 20 mm mounting Safety Key-Operated Switch,IP66/67 rated Dual Entry Safety Switch,NEMA 1 4X 12 13 compliant GKE Series Safety Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

ویدیو

Universal Precision Pressure Sensor Transmitter For Industry Process Control

بهترین قیمت رو بدست بیار

ویدیو

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

بهترین قیمت رو بدست بیار

ویدیو

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

بهترین قیمت رو بدست بیار

ویدیو

GXPS800 Extreme Environment Heat Resistant ±0.1Accuracy Pressure Transmitter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

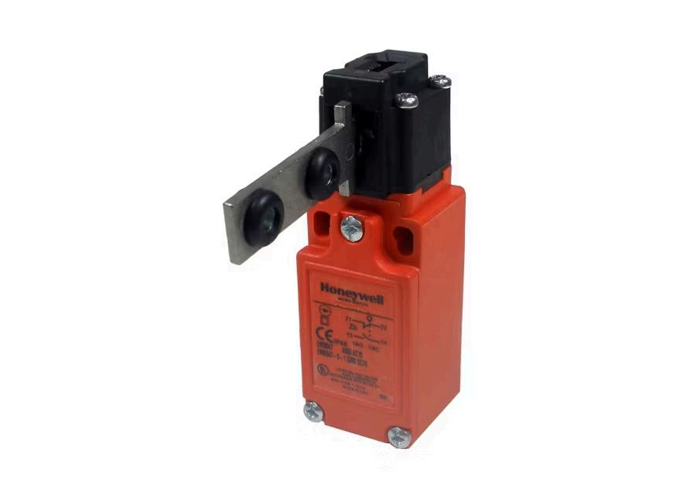

Honeywell GKE Series Safety Key-Operated Switch

Glass-filled polyester housing. IEC 20 mm mounting. cULus, CE, SIL3. IP66/67. NEMA 1, 4X (indoor), 12, 13. Silver contacts

The GKE Series safety key-operated switch provides enhanced reliability for safety hard guarding applications in a compact, cost-effective package. Featuring positive opening safety contacts and multiple contact configurations, the GKE's rotating head allows actuator engagement from five orientations. The switch features double insulation per IEC 60947-5-1, and has a choice of two standard actuators.

Key Features

Red switch body for easy safety recognition
20 mm to 22 mm mounting centers per EN50047 which accept M4 or #8 mounting hardware
Different contact options: 1NC (normally closed) and 1NO normally open) or 2NC
All NC contacts are positive opening
Actuator head 60947-5-1 3 specification
Actuator head can be indexed in any of four positions, in 90° increments
Switch chamber sealed to IP66/IP67 and NEMA 1, 4X (indoor), 12, 13
CE, CCC, and cULus certifications for global applications
Different threaded conduit options
Designed and agency evaluated, per SIRA, for safety functions up to and including a SIL3 level

Applications

Safety interlock for guards or doors on equipment and machinery
Designed for hinge or sliding guards or doors

Differentiation

Switch design with dual entry (side or top) for actuator key
Compact size of 31 mm L × 33 mm W × 96 mm H [1.2 in L × 1.3 in W × 3.8 in H]
Rigid or flexible stainless steel actuator keys

Available Models

Part Number	Description
GKEA01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 12 NPT, Plastic, Silver Contacts
GKEA03L	SAFETY LIMIT SWITCH-HEAVY DUTY
GKEA06L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 2NC Direct Opening, Slow Action, 12 NPT, Plastic, Silver Contacts
GKEC01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 20 mm, Plastic, Silver Contacts
GKEC03L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Slow Action, Break-Before-Make (B.B.M.), 20 mm, Plastic, Silver Contacts

TABLE 1. PERFORMANCE SPECIFICATIONS

Characteristic	Parameter
Description	Dual entry key-operated safety interlock switch
Agency certifications	CE, DOC A340 cULus, File E37138 CCC, Certificate # 2011010305489827 SIL, Reference SIRA FSP 09009/02
Housing material	Glass-filled thermoplastic polyester
Actuator key material	Stainless steel
Electrical connection	20 mm or 0.5-14 NPT conduit with each wiring point in switch a threaded terminal screw
Contact/switch options	1NC/1NO slow action BBM, 1NC/1NO snap action, 2NC slow action
Contact design	Double break, electrically separated (Zb)
Contact material	Silver alloy
Electrical ratings	See table 2
Utilization category	1NC/1NO: AC-15, A600; DC13-Q300 2NC: AC-15, A300; DC13-Q300
Rated operational voltage (Ue)	1NC/1NO: 120 Vac, 240 Vac, 600 Vac, 125 Vdc, 250 Vdc 2NC: 120 Vac, 240 Vac, 125 Vdc, 250 Vdc
Rated operational current (Ie)	1NC/1NO: 6 A, 3 A, 1.2A, 0.55, 0.27 2NC: 6 A, 3 A, 0.55 A, 0.27 A
Thermal current (Ith)	10 A
Rated insulation (Ui)	1NC/1NO: 600 V 2NC: 300 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protection device (SCPD)	Class J fuse, 10 A/600 V
Pollution degree	3
Environmental sealing	IP 66/67; NEMA 1, 4X (Indoor), 12, 13
Operating temperature	-25° C to 85° C [-13° F to 185° F]
Shock	50 g per IEC 60068-2-27
Vibration	10 g per IEC 60068-2-6
MCTF (Mechanical life)	15,930,000 cycles
MCTF (Electrical life)	>25,000 cycles with single-sided confidence limit of 75%
SIL Capability	SIL3 capable with HFT=1 with reference to IEC 61508-2:2010 functional safety
Proof test interval	1 year

TABLE 2. ELECTRICAL RATINGS

Designation and Utilization Category	Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)	24 V	120 V	240 V	380 V	480 V	500 V	600 V
AC-15	A300	-	6 A	3 A	-	-	-	-
AC-15	A600	-	6 A	3 A	1.9 A	1.5 A	1.4 A	1.2 A
DC-13	Q300	2.8 A	0.55 A	0.27 A	-	-	-	-
