Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

جزئیات محصول

مهر و موم:

IP67، NEMA 1، 4، 12، 13

مخاطب:

نقره، روکش طلا روی نقره

مجرا/کانکتورها:

1/2 NPT، PG 13.5، 20 میلی متر، PF 1/2؛ برد هریسون هادی 10 پین

نیرو برای حفظ شفت فعال سازی:

1CPS و 2CPS: 25 پوند*

نیروی عامل شفت محرک:

1CPS و 2CPS: 40 پوند*

برجسته کردن:

Honeywell single head cable pull,UL certified precision pressure sensor,IP67 rated NEMA pressure sensor

UL certified precision pressure sensor

IP67 rated NEMA pressure sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، Western Union ، T/T ، MoneyGram

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

بهترین قیمت رو بدست بیار

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

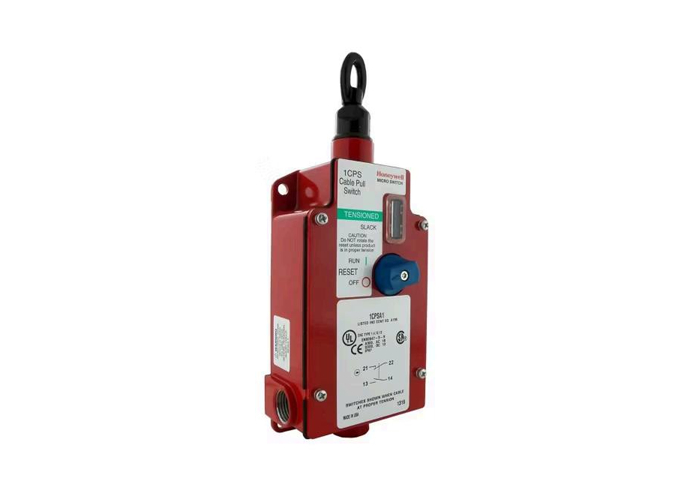

Honeywell 1CPS Series Single Head Cable Pull

Honeywell's MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, offering a cost-effective solution compared to multiple emergency stop push-buttons. The CPS Series features an internal mechanism that latches on both slackened (push) and pulled cable conditions.

The 1CPS Series is designed for applications with cable spans up to 76 m (250 ft), making it ideal for shorter runs or zone protection in automated systems. For longer conveyor lines up to 152 m (500 ft), the 2CPS Series is available.

The system includes a visual tension indicator and direct-opening switch contacts that remain closed when properly tensioned. When the cable is pulled, slackened, or broken, the NC (Normally Closed) contacts open immediately and remain latched until manually reset.

Key Features

Direct opening action of NC (Normally Closed) contacts
Multiple contact configurations available (1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC)
Standard 76 m (250 ft) cable span capacity (±17°C/±30°F environment)
Removable contact block version available (2CPS)
E-stop option (1CPS) and low profile reset options
Large wiring cavity with straight-through wiring
High-intensity LED status indicators available
Gold-plated contacts standard on 2CPS, optional on 1CPS
Electrostatic, epoxy-coated, die-cast zinc housing

Product Differentiation

Unique internal mechanism latches on both slackened (push) and pulled cable conditions for enhanced safety.

Customer Benefits

Cost-effective emergency stop solution compared to multiple push buttons
Reduces nuisance stops from temperature variations or cable stretch
Positive opening of contacts when cable is actuated

Typical Applications

Warehouse and distribution center conveyor systems
High-vibration conveyor applications
Environments with wide temperature swings
Perimeter guarding in hose-down conditions
Packaging equipment and assembly lines

Technical Specifications

Characteristic	Parameter
Description	Cable-pull safety switches
Switching options	1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC direct acting
Sealing	IP67, NEMA 1, 4, 12, 13
Contacts	Silver, gold plated over silver
Conduit/connectors	1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor
Operating temperature	-40°C to 80°C (-40°F to 176°F)
Mechanical endurance	1 million operations
Approvals	UL, CSA, CE, UKCA, SIL

Electrical Ratings

AC Voltage	AC Current	DC Voltage	DC Current
120V	6A	24V	2.8A
240V	3A	125V	0.55A
		250V	0.27A

Ith = 10 A
