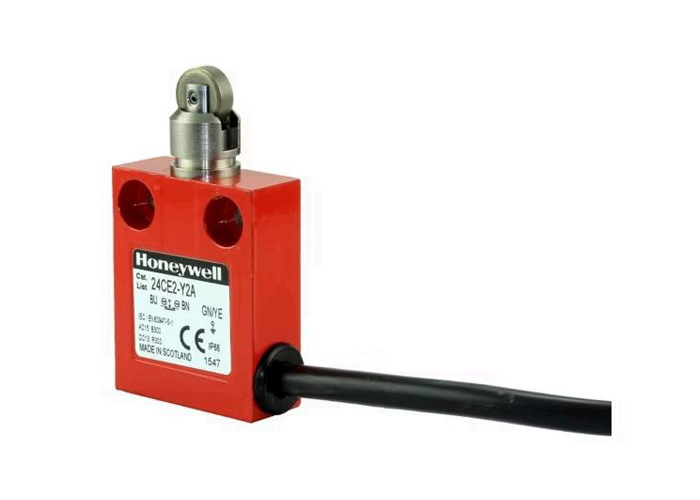

Name: Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: سری 24CE
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Honeywell 24CE miniature metal housing,IEC945-5-1 compliant pressure sensor,IP66 rated silver contacts sensor

IEC945-5-1 compliant pressure sensor

IP66 rated silver contacts sensor

نام تجاری:

Honeywell

شماره مدل:

سری 24CE

با ما تماس بگیرید

درخواست نقل قول

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

جزئیات محصول

جریان عملیاتی نامی:

1.5 A، 0.1 A

نوع تماس:

عمل کند

مواد تماس تلفنی:

آلیاژ نقره، تماس با روکش طلا اختیاری است

دسته استفاده:

AC15، B300: DC13، R300

ولتاژ عملیاتی نامی (Ue):

240 ولت ac یا dc

جریان حرارتی نامی (Ith):

10 A

برجسته کردن:

Honeywell 24CE miniature metal housing,IEC945-5-1 compliant pressure sensor,IP66 rated silver contacts sensor

IEC945-5-1 compliant pressure sensor

IP66 rated silver contacts sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

ویدیو

Universal Precision Pressure Sensor Transmitter For Industry Process Control

بهترین قیمت رو بدست بیار

ویدیو

Accurate Differential Pressure Transmitter , Differential Pressure Sensor

بهترین قیمت رو بدست بیار

ویدیو

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

بهترین قیمت رو بدست بیار

ویدیو

GXPS800 Extreme Environment Heat Resistant ±0.1Accuracy Pressure Transmitter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Honeywell 24CE Series Miniature Safety Switches

Honeywell's 24CE Series miniature electromechanical safety switches feature a rugged metal housing with positive opening normally closed contacts to EN/IEC 60947-5-1-3 specifications. Their compact size makes them ideal for applications where space is limited on machinery.

Key Features

Compact metal housing with 25.4 mm [1.0 in] center-to-center mounting
Positive opening operation of normally closed contacts to EN/IEC 60947-5-1 specification
Evaluated for safety functions up to SIL3 level (IEC 61508-2:2010)
Three circuit options: 1NC/1NO BBM, 1NC/1NO MBB, and 1NC
Wide range of actuator heads and levers
Gang mounting capability for multiple-pole applications
CE and UKCA approvals
IP66 environmental sealing
Operating range: 0°C to 70°C [32°F to 158°F] (standard) or -40°C to 70°C [-40°F to 158°F] (optional)

Applications

Industrial

Machine tools (small doors and apertures)
Material handling equipment
Packaging machinery
Trailer/truck restraint systems (dock-loks)

Transportation

Small construction machinery

Customer Benefits

Miniature rugged design with common 25.4 mm mounting footprint
Easy gang mounting for multi-pole capability
Low temperature option available (-40°C [-40°F])
Long mechanical life up to 10 million operations

Product Differentiation

Compact dimensions: 40 mm L × 16 mm W × 49 mm H [1.58 in × 0.63 in × 1.93 in]
Positive opening normally closed contacts with optional normally open contact
SIL3 safety capability evaluation

Technical Specifications

Characteristic	Parameter
Description	Miniature safety electromechanical switch
Certifications	CE, UKCA, IEC/EN 60947-5-1
Housing material	Epoxy coated die-cast zinc
Actuators	Multiple options including pin plunger, roller plunger (parallel/perpendicular), rotary, and ball-bearing plunger variants
Terminations	3-core or 5-core harmonised Cenelec cable
Contact options	1NC/1NO BBM, 1NC/1NO MBB, 1NC (all normally closed contacts are positive opening)
Contact type	Slow action
Contact material	Silver alloy (gold-plated optional)
Utilization category	AC15, B300: DC13, R300
Rated operational voltage (Ue)	240 V ac or dc
Rated operational current	1.5 A, 0.1 A
Rated thermal current (Ith)	10 A
Rated impulse withstand (Uimp)	2500 V
Maximum fuse rating	10 A
Environmental sealing	IP66
Operating temperature	Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F]
Mechanical life (MCTF)	>1,000,000 cycles
Electrical life (MCTF)	>25,000 cycles
SIL Capability	Up to SIL3 (HFT1), IEC 61508-2
Proof test interval	1 year

Electrical Ratings (EN/IEC 60947-5-1)

AC			DC
B300		AC15	R300		DC13
UE (Volts)	IE (Amps)	VA Rating	UE (Volts)	IE (Amps)	VA Rating
120	3	3600 (Make) 360 (Break)	125	0.22	28 (Make/Break)
240	1.5	3600 (Make) 360 (Break)	250	0.1	28 (Make/Break)

Available Models

Part Number	Description
24CE31-T2	SAFETY LIMIT SWITCH - ENCLOSED
24CE31-Y5	ENCLOSED BASIC SWITCH
