Name: Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-190
Price: 5,000.00 USD
Availability: InStock

خونه > محصولات > سنسور کیفیت آب >

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor,0-1500mg/L Range Water Quality Sensor,±5%FS Accuracy Digital COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

محل منبع:

چین

نام تجاری:

kacise

گواهی:

شماره مدل:

KWS-190

با ما تماس بگیرید

درخواست نقل قول

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

جزئیات محصول

وزن:

1 کیلوگرم (بدون کابل)

دامنه اندازه گیری:

0-500 میلی گرم در لیتر؛ 0-1500 میلی گرم در لیتر

دقت:

± 5% FS (0-500mg/L)؛ ± 10% FS (500-1500 میلی گرم در لیتر)

قطعنامه:

0.1 میلی گرم در لیتر؛ 0.1NTU

منبع تغذیه:

12~24VDC

برجسته کردن:

0-500mg/L Range COD Sensor,0-1500mg/L Range Water Quality Sensor,±5%FS Accuracy Digital COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

بهترین قیمت رو بدست بیار

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

بهترین قیمت رو بدست بیار

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

بهترین قیمت رو بدست بیار

اندازه گیری با اندازه گیری 0.00-20.00mg/L با دقت ±2%F.S. و وضوح 0.01mg/L

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86--17719566736

حالا تماس بگیرید

توضیحات محصول

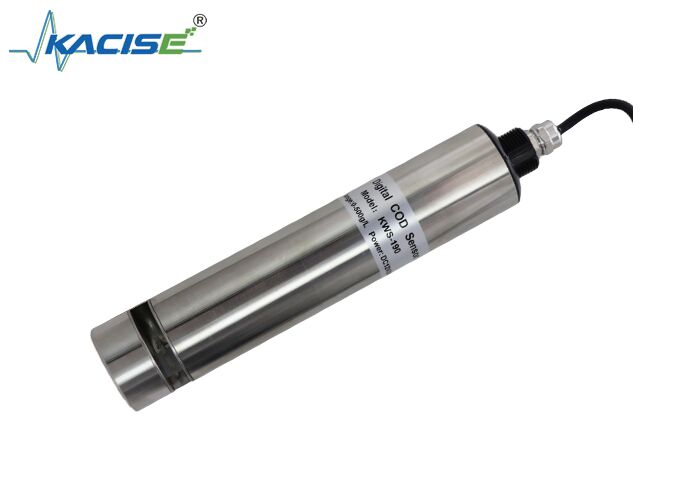

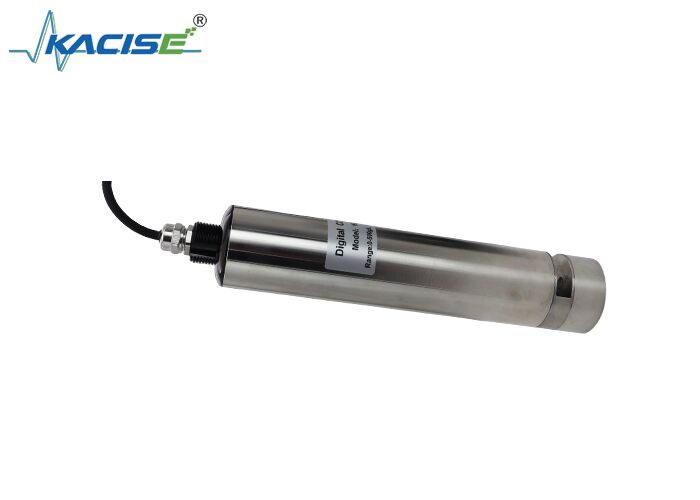

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
