Name: Deltabar PMD55B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: دلتابار PMD55B
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD55B

differential pressure sensor with warranty

precision pressure transmitter PMD55B

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

شماره مدل:

دلتابار PMD55B

با ما تماس بگیرید

درخواست نقل قول

Deltabar PMD55B - differential pressure transmitter

جزئیات محصول

دقت:

Dard: تا 0.05٪

پلاتین::

تا 0.025٪

محدوده اندازه گیری فشار:

400 mbar ... 700 bar (1.5 psi ... 10,500 psi)

قطعات خیس شده اصلی:

316L، آلیاژ سی، تانتال، مونل، PTFE، طلا

غشای فرآیند مواد:

316 لیتر، آلیاژ سی، تانتال، مونل، PTFE، طلا

سلول اندازه گیری:

400 mbar ... 700 بار (6 psi ... 10,500 psi)

برجسته کردن:

Deltabar PMD55B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD55B

differential pressure sensor with warranty

precision pressure transmitter PMD55B

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Deltabar PMD55B - differential pressure transmitter

بهترین قیمت رو بدست بیار

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

بهترین قیمت رو بدست بیار

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

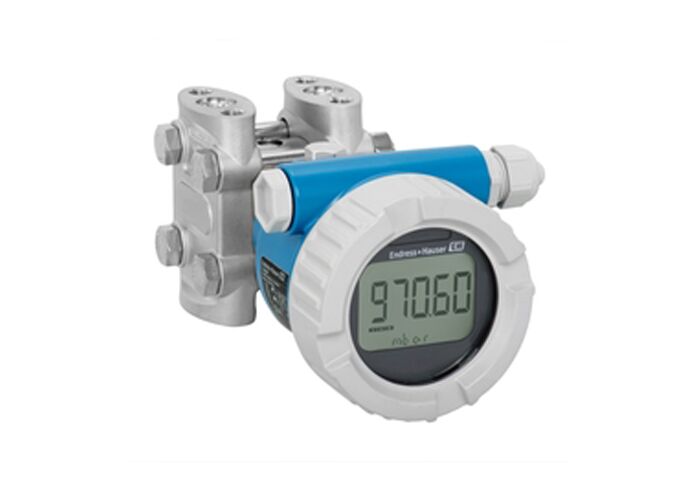

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
