Name: Deltabar PMD75B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: دلتابار PMD75B
Price: 152.00 USD
Availability: InStock

خونه > محصولات > سنسور فشار دقیق >

Deltabar PMD75B - differential pressure transmitter

Deltabar PMD75B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD75B

differential pressure sensor with warranty

precision pressure transmitter PMD75B

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

گواهی:

شماره مدل:

دلتابار PMD75B

با ما تماس بگیرید

درخواست نقل قول

Deltabar PMD75B - differential pressure transmitter

جزئیات محصول

دقت:

: تا 0.075 % پلاتین: تا 0.055 %

محدوده اندازه گیری:

10 mbar ... 40 بار (0.15 psi ... 600 psi)

دمای فرآیند:

-40 درجه سانتی گراد...+110 درجه سانتی گراد (-40 درجه فارنهایت...+230 درجه فارنهایت)

محدوده دمای متوسط:

-40 درجه سانتی گراد...+110 درجه سانتی گراد (-40 درجه فارنهایت...+230 درجه فارنهایت)

محدوده اندازه گیری فشار:

10 mbar ... 40 bar (0.15 psi ... 600 psi)

قطعات خیس شده اصلی:

316 لیتر، آلیاژ سی

برجسته کردن:

Deltabar PMD75B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD75B

differential pressure sensor with warranty

precision pressure transmitter PMD75B

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Deltabar PMD55B - differential pressure transmitter

بهترین قیمت رو بدست بیار

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

بهترین قیمت رو بدست بیار

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

بهترین قیمت رو بدست بیار

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

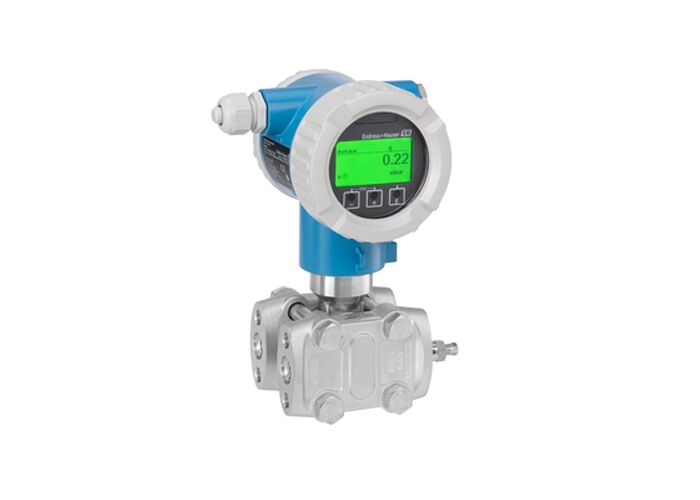

Deltabar PMD75B Differential Pressure Transmitter

The Deltabar PMD75B represents the latest generation of differential pressure transmitters, offering robust construction and intuitive operation both locally and remotely. This advanced instrument supports wireless control via mobile app using secure Bluetooth connectivity.

Key Specifications

Accuracy

Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range

10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature

-40°C...110°C (-40°F...230°F)

Pressure Range

10 mbar...40 bar (0.15 psi...600 psi)

Static Pressure

Up to 250 bar (3750 psi)

Wetted Materials

316L, AlloyC

Field of Application

This transmitter is designed for differential pressure monitoring in liquids or gases. The intuitive software includes guided wizards for setup and proof testing, minimizing operational errors and supporting condition-based maintenance to significantly improve technical service efficiency.

Key Benefits

Wireless device control in process areas using SmartBlue App without process interruption
Enhanced safety by reducing on-site accidents and protecting equipment in hard-to-reach areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Specifications

Parameter	Specification
Measuring Principle	Differential Pressure
Long Term Stability	0.05% of URL/year 0.13% of URL/5 years 0.23% of URL/10 years
Ambient Temperature	-40°C...85°C (-40°F...185°F)
Process Pressure Limit	250 bar (3750 psi)
Process Connection	NPT 1/4-18, RC1/4
Communication	4...20 mA HART, PROFINET with Ethernet-APL, Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionality for simplified integration.

Certifications & Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex
Safety: SIL
Design: EN 10204-3.1, NACE MR0175, NACE MR0103, AD2000
Drinking Water: NSF, KTW

Application Limits

None - suitable for a wide range of industrial applications.
