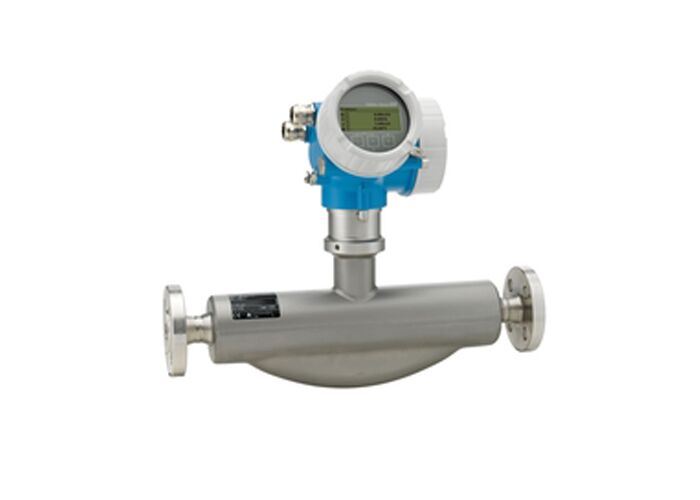

Proline Promass F 200 Coriolis Flowmeter
Robust flowmeter with genuine loop-powered technology providing highest measurement performance for liquids and gases across a wide range of industrial applications.
Field of Application
The Promass F series has established a reputation for exceptional accuracy and reliability. The F 200 model features industry-compliant two-wire technology for seamless integration into existing infrastructures. With intrinsically safe design (Ex ia) and Heartbeat Technology, it ensures high operational safety in hazardous areas and continuous process reliability.
Key Advantages
- Measuring principle operates independently of fluid properties like viscosity or density
- Highest measurement performance for liquids and gases
- Mass flow measurement error: ±0.1%
- Medium temperature up to +205°C (+401°F)
- Nominal diameter: DN 8 to 80 (3/8" to 3")
- Loop-powered technology
- Robust dual-compartment housing
- Worldwide safety approvals (SIL, Hazardous areas)
Technical Specifications
Measurement Performance
Mass flow (liquid):
±0.1%
Volume flow (liquid):
±0.1%
Mass flow (gas):
±0.25%
Density (liquid):
±0.0005 g/cm³
Operating Ranges
Measuring range:
0 to 70,000 kg/h (0 to 2,570 lb/min)
Medium temperature (standard):
-50 to +150°C (-58 to +302°F)
Medium temperature (option):
-50 to +205°C (-58 to +401°F)
Ambient temperature:
-40 to +60°C (-40 to +140°F)
Max. process pressure:
PN 100, Class 600, 63K
Measured Variables
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Construction Materials
Measuring tube:
1.4539 (904L); 1.4404; Alloy C22, 2.4602 (UNS N06022)
Connection:
1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Sensor housing:
1.4301/1.4307 (304L), corrosion resistant
Transmitter housing:
AlSi10Mg, coated, 1.4404 (316L)
Electrical & Communication
Outputs:
4-20 mA HART (passive), 4-20 mA (passive), Pulse/frequency/switch output (passive)
Digital communication:
HART, PROFIBUS PA, FOUNDATION Fieldbus
Power supply:
DC 18-35V (4-20 mA HART), DC 18-30V (20 mA HART), DC 9-32V (PROFIBUS PA)
Display/Operation:
4-line backlit display with touch control, remote display available
Degree of protection:
IP66/67, type 4X enclosure
Approvals & Certifications
Hazardous area: ATEX, IECEx, cCSAus, INMETRO, NEPSI, JPN, UK Ex
Product safety: CE, C-TICK
Functional safety: IEC 61508/IEC 61511
Metrological: ISO/IEC 17025, ISO 9001:2015 (Heartbeat Technology)
Pressure: PED, CRN, AD 2000
Material: 3.1 material, NACE MR0175/MR0103, PMI
Hygienic: 3-A, EHEDG, cGMP
