Name: Proline Promass X 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass X 300
Price: 2,540.00 USD
Availability: InStock

خونه > محصولات > فلومتر الکترومغناطیسی >

Proline Promass X 300 Coriolis flowmeter

Proline Promass X 300 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter industrial

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

گواهی:

شماره مدل:

Proline Promass X 300

با ما تماس بگیرید

درخواست نقل قول

Proline Promass X 300 Coriolis flowmeter

جزئیات محصول

محدوده اندازه گیری:

محدوده اندازه گیری 0 تا 4100 تن در ساعت (0 تا 4520 تن در ساعت)

Max. حداکثر process pressure فشار فرآیند:

پ.ن 100 کلاس 600

محدوده دمای متوسط:

50- تا 180+ درجه سانتی گراد (58- تا 356+ درجه فارنهایت)

دامنه دمای محیط:

استاندارد: -40 تا +60 درجه سانتیگراد (40- تا +140 درجه فارنهایت)

برجسته کردن:

Proline Promass X 300 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter industrial

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

شرایط پرداخت و حمل و نقل

محصولات مرتبط

Proline Promass S 300 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline Promass P 500 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline Promass Q 300 Coriolis flowmeter

بهترین قیمت رو بدست بیار

Proline t-mass F 500 thermal mass flowmeter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

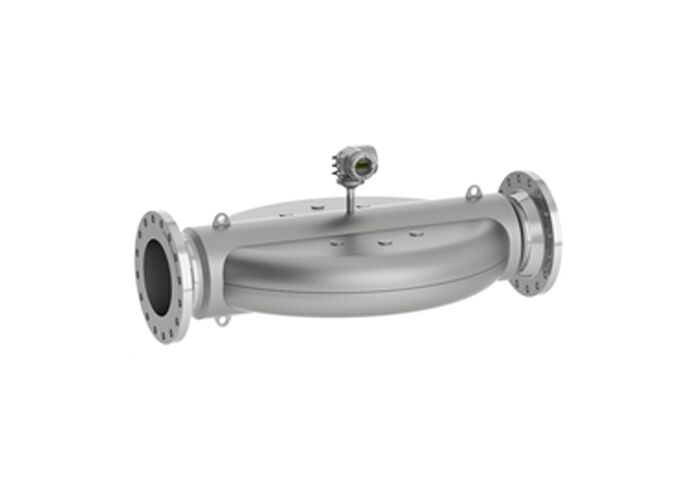

Proline Promass X 300 Coriolis Flowmeter

Highest capacity four-tube flowmeter with a compact, easily accessible transmitter for highest flow rates and outstanding performance in on/offshore oil and gas applications.

Key Specifications

Max. Measurement Error:

Mass flow (liquid): ±0.10% (standard), 0.05% (option)

Volume flow (liquid): ±0.10%

Mass flow (gas): ±0.25%

Density (liquid): ±0.0005 g/cm³

Measuring Range: 0 to 4100 t/h (0 to 4520 tn. sh./h)

Medium Temperature: -50 to +180 °C (-58 to +356 °F)

Max. Process Pressure: PN 100, Class 600

Nominal Diameter: DN 300 to 400 (12 to 16")

Wetted Materials:

Measuring tube: 1.4404 (316/316L)

Connection: 1.4404 (316/316L)

Field of Application

The patented four-tube Promass X provides premium accuracy (0.05%) for highest capacity and offers outstanding performance in on- and offshore applications in the oil and gas industry. The measuring principle operates independently of physical fluid properties such as viscosity or density.

Key Benefits

Increased profit - single installation point providing premium accuracy for large quantities
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in-/outlet run needs
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Device Features

Sensor Features

Four-tube system with low pressure drop
Complete exterior design made of 1.4435 (316L)
Nominal diameter: DN 300 to 400 (12 to 16")

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Technical Specifications

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration

Environmental Conditions

Ambient Temperature:

Standard: -40 to +60 °C (-40 to +140 °F)

Option: -50 to +60 °C (-58 to +140 °F)

Degree of Protection: IP66/67, type 4X enclosure

Inputs & Outputs

Type	Details
Outputs	3 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Product Safety: CE, C-tick, EAC marking

Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511

Metrological: ISO/IEC 17025, ISO 9001:2015, MI-005, MI-002, PTB

Marine: LR, DNV, ABS, BV, CCS approvals

Pressure: PED, CRN

Material: 3.1 material, NACE MR0175/MR0103, PMI, welding tests per EN ISO, ASME, NORSOK
