Name: Proline Prosonic Flow G 300 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonic Flow G 300
Price: 892.00 USD
Availability: InStock

خونه > محصولات > فلومتر التراسونیک >

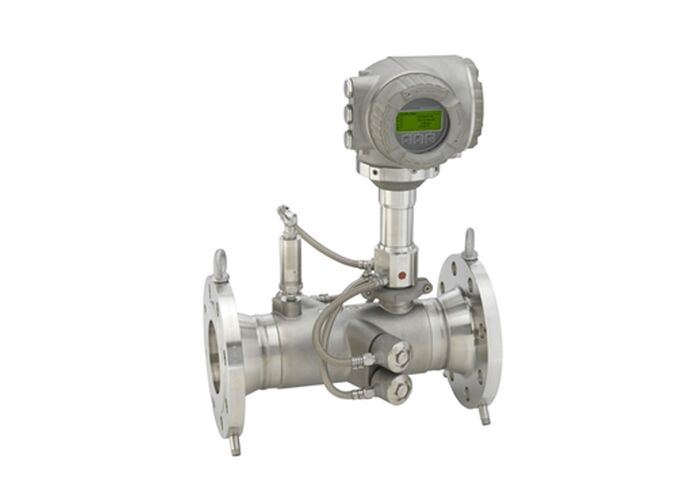

Proline Prosonic Flow G 300 ultrasonic flowmeter

Prosonic Flow G 300 ultrasonic flowmeter,ultrasonic flow meter with warranty,Proline ultrasonic flowmeter for liquids

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

محل منبع:

سوئیس

نام تجاری:

Endress+Hauser

گواهی:

شماره مدل:

Proline Prosonic Flow G 300

با ما تماس بگیرید

درخواست نقل قول

Proline Prosonic Flow G 300 ultrasonic flowmeter

جزئیات محصول

Max. حداکثر process pressure فشار فرآیند:

0.7 تا 101 bar a (10.15 تا 1464.88 psi a)

محدوده دمای متوسط:

50- تا 150 درجه سانتی گراد (58- تا 302+ درجه فارنهایت)

دامنه دمای محیط:

-40 تا 60 درجه سانتی گراد (40- تا 140+ درجه فارنهایت)

مواد محفظه حسگر:

فولاد ضد زنگ، 1.4404 (316/316L)، 1.4408/1.4409 (CF3M)

ترانسمی:

AlSi10Mg، پوشش داده شده؛ 1.4409 (CF3M) مشابه 316L پلی کربنات

درجه حفاظت:

نسخه فشرده: IP66/67، نوع محفظه 4X. اختیاری: آنتن خارجی WLAN: IP67

برجسته کردن:

Prosonic Flow G 300 ultrasonic flowmeter,ultrasonic flow meter with warranty,Proline ultrasonic flowmeter for liquids

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

Proline Prosonic Flow E 100 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow G 300 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow G 500 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

Proline Prosonic Flow I 400 ultrasonic flowmeter

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Proline Prosonic Flow G 300 Ultrasonic Flowmeter

The Prosonic Flow G 300 provides reliable flow measurement for a wide range of gas applications, even with wet gas and changing gas properties. Featuring a pressure-rated sensor housing with rupture disc for enhanced safety, this compact transmitter offers exceptional flexibility in operation and system integration.

Key Advantages

Flexible device with user-definable gas mixtures for demanding measuring tasks
Maximum reliability even with humid or wet gas - sensor design insensitive to condensate
High-performance process control with real-time pressure- and temperature-compensated values
Efficient multivariable solution with no pressure loss
Full access to process and diagnostic information with numerous, freely combinable I/Os
Integrated verification through Heartbeat Technology

Technical Specifications

Measurement Performance

Measurement Type	Accuracy	Range
Volume Flow (Standard)	±1.0% o.r. (3-40 m/s) ±2% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Volume Flow (Optional Calibration)	±0.5% o.r. (3-40 m/s) ±1.0% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Sound Velocity	±0.2% o.r.	-

Process Conditions

Parameter	Range
Medium Temperature	-50 to 150°C (-58 to +302°F) -50 to 100°C (-58 to +212°F) with integrated pressure cell
Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Measuring Range (Gas)	0.3 m/s to 40 m/s

Measured Variables

Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass

Construction Materials

Component	Material
Measuring Tube	1.4408/1.4409 (CF3M)
Transducer	1.4404 (316, 316L), Titan Grade 2
Sensor Housing	Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)

Device Features

Sensor Features

Direct measurement of flow, pressure & temperature
Wetted parts: titanium / 316L
Maximum measuring accuracy: 0.5%
Measuring principle unaffected by gas composition

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Freely configurable I/O functionality

Electrical & Communication

Inputs/Outputs

Type	Specifications
Outputs	3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Double pulse output, Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	24V DC, 100 to 230 V AC

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC

Product Safety: CE, C-tick

Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511

Pressure: PED, CRN

Material: 3.1 material, NACE MR0175/MR0103
