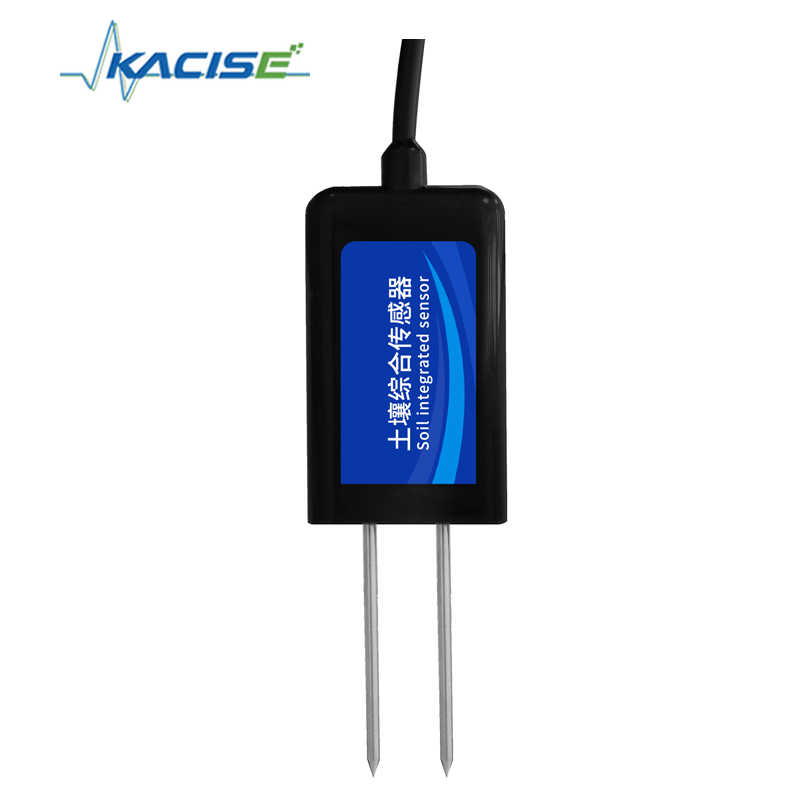

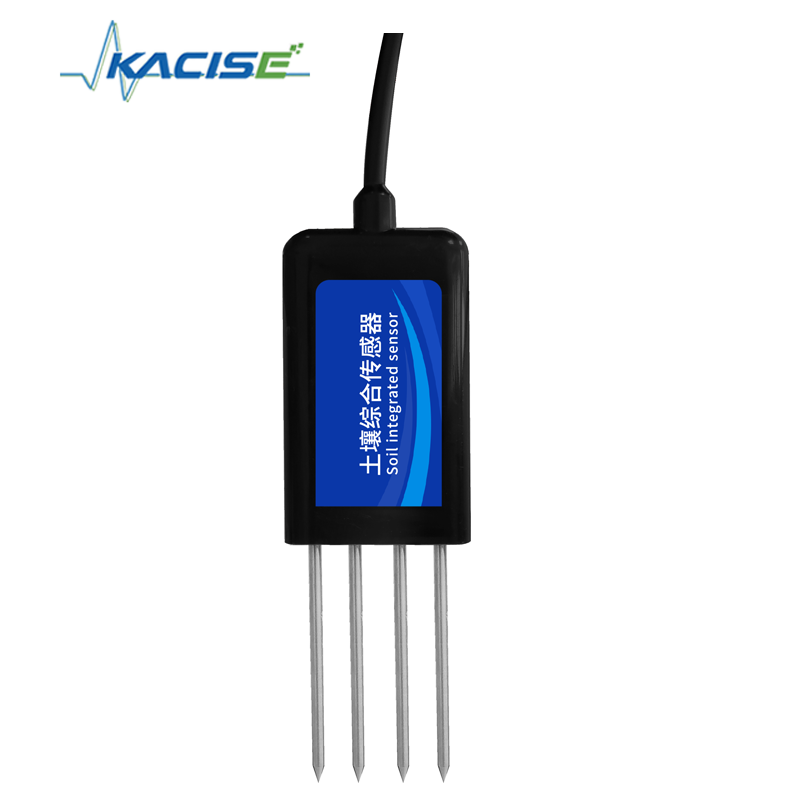

Name: KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-SM
Price: 5,000.00 USD
Availability: InStock

خونه > محصولات > >

KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design

محل منبع:

چین

نام تجاری:

KACISE

گواهی:

شماره مدل:

KQS-SM

با ما تماس بگیرید

درخواست نقل قول

KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design

جزئیات محصول

پارامترهای اندازه گیری:

دمای خاک، رطوبت، pH، هدایت الکتریکی، شوری، نیتروژن، فسفر، پتاسیم (تا 8 پارامتر)

مواد پروب:

304 فولاد ضد زنگ، الکترود ضد خوردگی آلیاژ آلومینیوم و روی

سیگنال خروجی:

RS485 (Modbus-RTU)، 4-20mA، 0-5V (فقط دما و رطوبت)

درجه حفاظت:

IP68

مصرف برق:

170 میلی وات / 12 ولت

وزن:

120 گرم (2 عنصر: دما + رطوبت)

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

جزئیات بسته بندی

هر واحد دارای جعبه جداگانه است و تمام جعبه ها در بسته های استاندارد یا درخواست های مشتریان در دسترس

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه

1000 قطعه/قطعه در هفته قابل مذاکره

محصولات مرتبط

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

بهترین قیمت رو بدست بیار

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

بهترین قیمت رو بدست بیار

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

بهترین قیمت رو بدست بیار

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

KQS-SM Soil Comprehensive Sensor

KQS-SM is a multi-functional soil sensor capable of monitoring up to 8 soil parameters including soil temperature, moisture (water content), pH value, electrical conductivity, salinity, nitrogen, phosphorus and potassium. It features high precision, fast response and stable output. Less affected by soil salinity, it is suitable for various soil types. It can be buried in soil for long-term use, resistant to electrolysis and corrosion, with vacuum potting and fully waterproof design. Widely used in scientific experiments, water-saving irrigation, greenhouse cultivation, horticulture, grassland monitoring, rapid soil testing, plant cultivation, wastewater treatment, and grain storage.

Key Features

High measurement accuracy, fast response, good interchangeability
Less affected by soil salinity, suitable for various soil types
Electrodes made of specially treated stainless steel, strong impact resistance
Fully sealed, acid and alkali resistant, can be buried in soil or submerged in water for long-term monitoring
Modular design, selectable configuration, supports up to 8 soil parameters

Applications

Scientific Experiments: Multi-parameter soil monitoring in soil science research
Water-saving Irrigation: Soil parameter data for precision agriculture irrigation decisions
Greenhouse Cultivation: Real-time soil parameter monitoring in greenhouse environments
Flower and Vegetable Gardening: Soil condition monitoring in horticulture
Grassland and Pasture: Soil moisture and nutrient monitoring in pasture areas
Rapid Soil Testing: On-site quick soil parameter detection
Plant Cultivation: Soil environment recording in plant growth research
Wastewater Treatment: Related parameter detection in wastewater discharge
Grain Storage: Moisture and temperature measurement of granular materials

Technical Parameters

Item	Specification
Power Supply	DC 7－30V / DC 5V
Soil Moisture Range	0－60% (volumetric water content)
Soil Temperature Range	-40－80℃
Conductivity Range	0－20000 us/cm
Salinity Range	0－10000 mg/L
pH Range	3－10 pH
N/P/K Range	0－2000 mg/kg
Soil Moisture Accuracy	±3% (0-35%); ±5% (35%-60%)
Soil Temperature Accuracy	±0.5℃
Conductivity Accuracy	±5% (0－1000 us/cm)
Salinity Accuracy	±5% (0－500 mg/L)
pH Accuracy	±0.3 pH
N/P/K Accuracy	±2%FS (0－200 mg/kg)

Note: Data beyond the above accuracy ranges for conductivity, salinity, N/P/K may have relatively higher error, but can still be used as linear trend values.

Item	Specification
Soil Moisture Resolution	0.1%
Soil Temperature Resolution	0.1℃
Conductivity Resolution	1 us/cm
Salinity Resolution	1 mg/L
pH Resolution	0.1 pH
N/P/K Resolution	1 mg/kg
Load Capacity	Current output ≤250Ω; Voltage output ≥1KΩ
Operating Environment	Soil temp -40℃－80℃; Moisture ≤60%
Protection Grade	IP68
Probe Material	304 stainless steel, anti-corrosion aluminum-zinc alloy electrode
Product Weight	120g (2-element: temp + moisture)
Power Consumption	170mW / 12V (varies by model)
Cable Length	Standard 2.5m (customizable)

Calculation Formulas (Analog Signal Output)

F: Soil volumetric water content (%); T: Soil temperature (℃); I: Output current (mA); V: Output voltage (V).

Note: Only soil temperature and moisture have analog signal output; other parameters do not.

Signal Type	Moisture Formula	Temperature Formula
4-20mA	F = (I - 4) / 16 * 60	T = (I - 4) / 16 * 120 - 40
0-5V	F = V / 5 * 60	T = V / 5 * 120 - 40

Wiring

(1) If the sensor is used with the company's display instrument, connect using the sensor cable directly.
(2) For standalone sensors, refer to the actual cable label. Default wiring:

Wire Color	Voltage/Current Output	RS485
Red	Power +	Power +
Black		A+
Yellow		B-
Green	Power -	Power -
White	Analog signal (temp/moisture)

Dimensions
